LED Strobe – JyunYao Technology Co., Ltd. https://www.jyunyao.com.tw 竣耀科技 Fri, 12 Sep 2025 06:22:19 +0000 zh-CN hourly 1 https://wordpress.org/?v=4.5.3 Screw-in LED Strobe (FL-L005) https://www.jyunyao.com.tw/?p=191 https://www.jyunyao.com.tw/?p=191#respond Wed, 27 Oct 2010 08:43:57 +0000 http://www.jyunyao.com.tw/?p=191 The cute and adorable strobes can be used as decorations for window display of shops, facades of clubs/bars, and other decoration usages. This type of miniature LED flash lamp always attracts attention of the public wherever it was applied. The diamond-like octagon case design allows the flash to be refracted into different angles thereby emitting diamond-like sparkles. The long life LED lamp consumes 1.6 watts per flash with the standard flash rate of 1 flash per second.

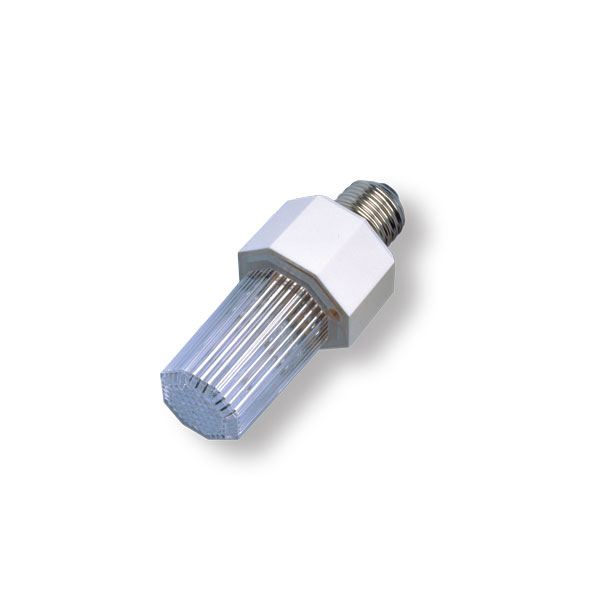

FL-005.jpg FL-L006-view.jpg

Specifications

Model No FL-L005
Illuminant 6*0.1W LED
5 colors options
Flash Rate 1 flash per second (60 fpm)
Dimension ( LxØ) 110xØ25 mm
Weight 0.06kg
Voltages Available 120V/60Hz or 230V/50Hz
Fuse N/A
Power Consumption 1.6W

Key To Symbols

Video

Sorry, Not yet available

Manual Download

Sorry, Not yet available

]]> https://www.jyunyao.com.tw/?feed=rss2&p=191 0 Plug-in LED Strobe (FL-L006) https://www.jyunyao.com.tw/?p=189 https://www.jyunyao.com.tw/?p=189#respond Wed, 27 Oct 2010 08:40:43 +0000 http://www.jyunyao.com.tw/?p=189 The cute and adorable strobes can be used as decorations for window display of shops, facades of clubs/bars, and other decoration usages. This type of miniature LED flash lamp always attracts attention of the public wherever it was applied. The diamond-like octagon case design allows the flash to be refracted into different angles thereby emitting diamond-like sparkles. The long life LED lamp consumes 1.6 watts per flash with the standard flash rate of 1 flash per second.

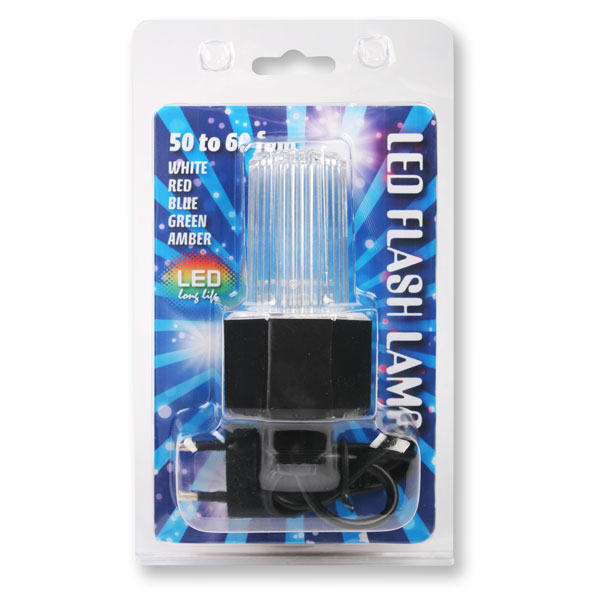

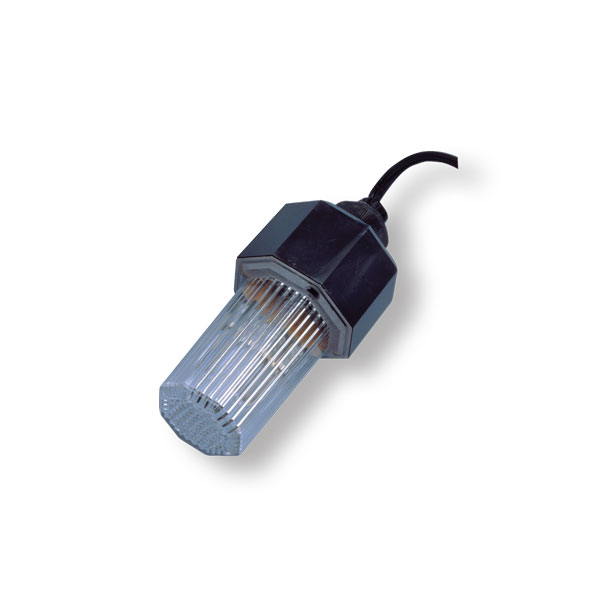

FL-006.jpg FL-L006-view.jpg

Specifications

Model No FL-L006
Illuminant 6*0.1W LED
5 colors options
Flash Rate 1 flash per second (60 fpm)
Dimension ( LxØ) 110xØ25 mm
Weight 0.09kg
Voltages Available 120V/60Hz or 230V/50Hz
Fuse N/A
Power Consumption 1.6W

Key To Symbols

Video

Sorry, Not yet available

Manual Download

Sorry, Not yet available

]]> https://www.jyunyao.com.tw/?feed=rss2&p=189 0 Mini LED Strobe (SF-L30) https://www.jyunyao.com.tw/?p=163 https://www.jyunyao.com.tw/?p=163#respond Mon, 25 Oct 2010 04:00:05 +0000 http://www.jyunyao.com.tw/?p=163 A must for young rockers, mobile DJs and eye-catching displays, the Mini LED Strobe is CE approved. Bright reliable led strobe with sturdy case and long life, these LED strobes lasts for years. And it features an attractive plastic case, moveable handle and 0.5~20 Hz flash speed control on upside of unit.

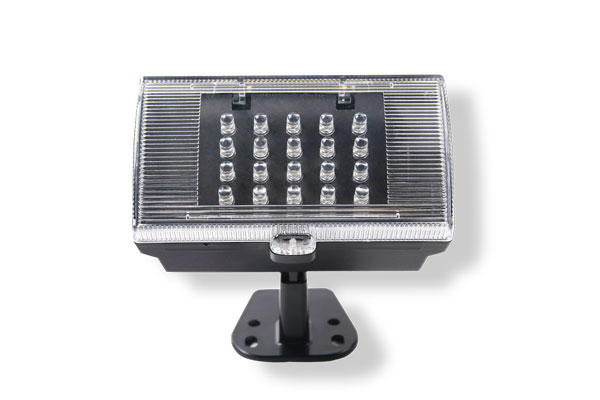

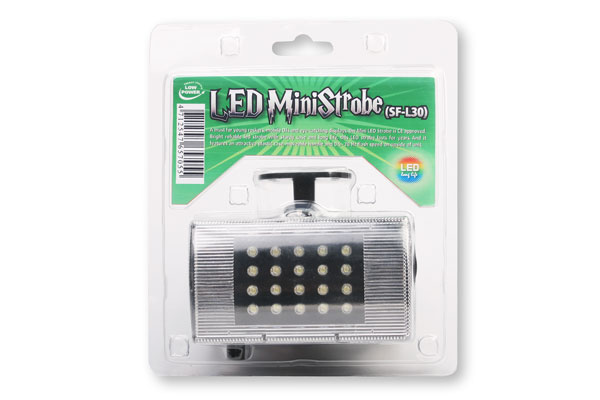

SF-L30.jpg SF-L30-view.jpg

Specifications

Model SF-L30
Illuminant 20*0.1W White LED
Flash Speed 0.5Hz~20Hz
Connector N/A
Control Mode Plug and Play
Dimension (LxWxH) 110 x 61 x 55mm
Weight 0.25kg
Applicable Voltages 120V/60Hz or 230V/50Hz
Fuse T0.5A/250V
Power Consumption 3.1W

Key To Symbols

Video

Sorry, Not yet available

Manual Download

Sorry, Not yet available

]]> https://www.jyunyao.com.tw/?feed=rss2&p=163 0 Mini LED Strobe (SF-L35) https://www.jyunyao.com.tw/?p=160 https://www.jyunyao.com.tw/?p=160#respond Mon, 25 Oct 2010 02:43:24 +0000 http://www.jyunyao.com.tw/?p=160 A must for young rockers, mobile DJs and eye-catching displays, the Mini LED Strobe is CE approved. Bright reliable led strobe with sturdy case and long life, these LED strobes lasts for years. And it features an attractive plastic case, moveable handle and 0.5~20 Hz flash speed control on upside of unit.

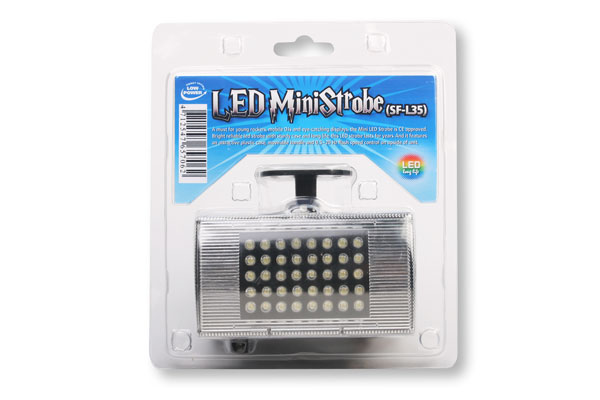

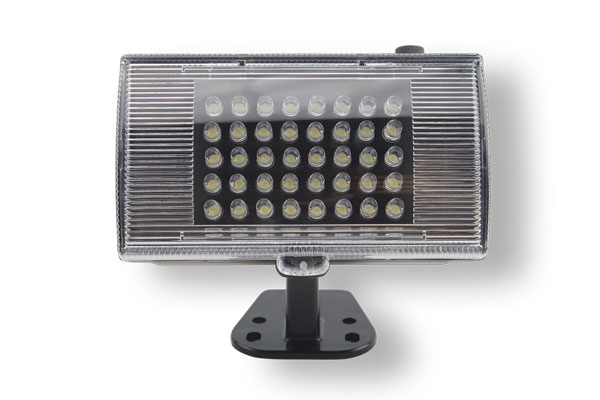

SF-L35.jpg SF-L35-view.jpg

Specifications

Model SF-L35
Illuminant 40*0.1W White LED
Flash Speed 0.5Hz~20Hz
Connector N/A
Control Mode Plug and Play
Dimension (LxWxH) 110 x 61 x 55mm
Weight 0.25kg
Applicable Voltages 120V/60Hz or 230V/50Hz
Fuse T0.5A/250V
Power Consumption 4.9W

Key To Symbols

Video

Sorry, Not yet available

Manual Download

Sorry, Not yet available

]]> https://www.jyunyao.com.tw/?feed=rss2&p=160 0 Elfin Compact Strobe (ES-1) https://www.jyunyao.com.tw/?p=158 Sat, 23 Oct 2010 09:00:01 +0000 http://www.jyunyao.com.tw/?p=158 Elfin series products are the best choice for mobile DJ. It includes two categories – Elfin flower and Elfin strobe. The strobe category has three available models, Elfin Compact Strobe, Elfin Multi-function Strobe & Elfin Modulator Strobe. Although small, it is of high efficiency; the performance of each Elfin model will bring you surprise and win your admiration.

Elfin-Modulator-Strobe-(ES-1).jpg ES-1.jpg

Features

  • Extremely long-life led light source (>20,000 hr. Rated), no bother of bulb replacement.
  • Very low power consumption benefits more energy saving.
  • Long running, never overheating, and absolute cooling.
  • Very powerful & unique strobe effect for Elfin Strobes.
  • With 68 single color LEDs of 0.1W. .
  • Flashing speed is adjustable, from one flash per 0.1 second to one flash per 2 second.
  • Total power: 7.2W

Specifications

Model ES-1
Illuminant 68*0.1W White LED
Flash Rate 0.5Hz~20Hz
Audio Control (internal mic) N/A
Dimensions (LxØ) 170xØ165mm
Weight 0.5kg
Voltages Available 120V/60HZ or 230V/50Hz
Fuse 0.5A
Power Consumption 7.2W
With Power Supply N/A

Key To Symbols

Video

Manual Download

Elfin Manual V1.3

]]> Elfin Multi-Function Strobe (ES-2) https://www.jyunyao.com.tw/?p=157 Sat, 23 Oct 2010 08:54:18 +0000 http://www.jyunyao.com.tw/?p=157 Elfin series products are the best choice for mobile DJ. It includes two categories – Elfin flower and Elfin strobe. The strobe category has three available models, Elfin Compact Strobe, Elfin Multi-function Strobe & Elfin Modulator Strobe. Although small, it is of high efficiency; the performance of each Elfin model will bring you surprise and win your admiration.

Elfin-Multi-Function-Strobe-(ES-2).jpg ES-1.jpg

Features

  • Extremely long-life led light source (>20,000 hr. Rated), no bother of bulb replacement.
  • Very low power consumption benefits more energy saving.
  • Long running, never overheating, and absolute cooling.
  • Very powerful & unique strobe effect for Elfin Strobes.
  • With 68 single color LEDs of 0.1W.
  • Function option of 4 sections:
    1. Flashes controlled by music: Outputing flashes of different intensity according to the intensity of the musical rhythm.
    2. Single time flashing: Flashing speed can be adjusted from one flash per 0.1 second to one flash per 2 seconds.
    3. Interval 4-time flashing: Continuous 4 flashing within 0.4 seconds –>interval –> continuous 4 flashing within 0.4 seconds. Interval time can be adjusted from 0.1 second to 2 seconds.
    4. Interval 8-time flashing: Continuous 8 flashing within 0.8 seconds –>interval –>continuous 8 flashing within 0.8 seconds. Interval time can be adjusted from 0.1 second to 2 seconds.
  • With adjustment of audio sensitivity
  • Including 15VDC / 230VAC power supply to be connected exteriorly.
  • Total power: 5W

Specifications

Model. ES-2
Illuminant 68*0.1W White LED
Flash Rate 0.5Hz~20Hz
Audio Control (internal mic) YES
Dimensions (LxØ) 170xØ165mm
Weight 0.5kg
Voltages Available AC100-240V 50/60Hz
Fuse N/A
Power Consumption 5W
With Power Supply INPUT: AC100-240V 50/60Hz
OUTPUT: DC15V 700mA

Key To Symbols

Video

Manual Download

Elfin Manual V1.3

]]> Elfin Modulator Strobe (ES-3) https://www.jyunyao.com.tw/?p=156 Sat, 23 Oct 2010 08:48:07 +0000 http://www.jyunyao.com.tw/?p=156 Elfin series products are the best choice for mobile DJ. It includes two categories – Elfin flower and Elfin strobe. The strobe category has three available models, Elfin Compact Strobe, Elfin Multi-function Strobe & Elfin Modulator Strobe. Although small, it is of high efficiency; the performance of each Elfin model will bring you surprise and win your admiration.

EF-3-color-card.jpg ES-1.jpg

Features

  • Extremely long-life led light source (>20,000 hr. Rated), no bother of bulb replacement.
  • Very low power consumption benefits more energy saving.
  • Long running, never overheating, and absolute cooling.
  • Very powerful & unique strobe effect for Elfin Strobes.
  • With 68 single color LEDs of 0.1W. It has four colored plastic pieces (red, orange, green and blue) that give users various colorful flashes for pleasure any time wanted.
  • .With controls by 14 optional pitch scales (high, mediant, bass, alt, medium-low, low-high, diatonic, anti-high, anti-mediant, anti-bass, anti-alt, anti-medium/low, anti-low/high, anti-diatonic). When selected any one of the 14 options, ES-3 projects light beam of different brightness according to different intensity of the pitch scale.
  • When used more than one ES-3 at the same time, all the units can present different combinations of light projecting effects according to different musical scales. No Link among the ES-3s is needed. None controller is necessary, either. Besides, moving effect will be outstandingly enhanced if coordinated different pitch scales with different colors of light output.
  • With warning function. Different warning formula available for selection.
  • With adjustment of audio sensitivity
  • 15V DC / 230V AC power supply to be exteriorly connected.
  • Total power consumption: 5W

Specifications

Model. ES-3
Illuminant 68*0.1W White LED
Flash Rate 0.5Hz~20Hz
Audio Control (internal mic) YES
Dimensions (LxØ) 170xØ165mm
Weight 0.5kg
Voltages Available AC100-240V 50/60Hz
Fuse N/A
Power Consumption 5W
With Power Supply INPUT: AC100-240V 50/60Hz
OUTPUT: DC15V 700mA

Key To Symbols

video

Manual Download

Elfin Manual V1.3

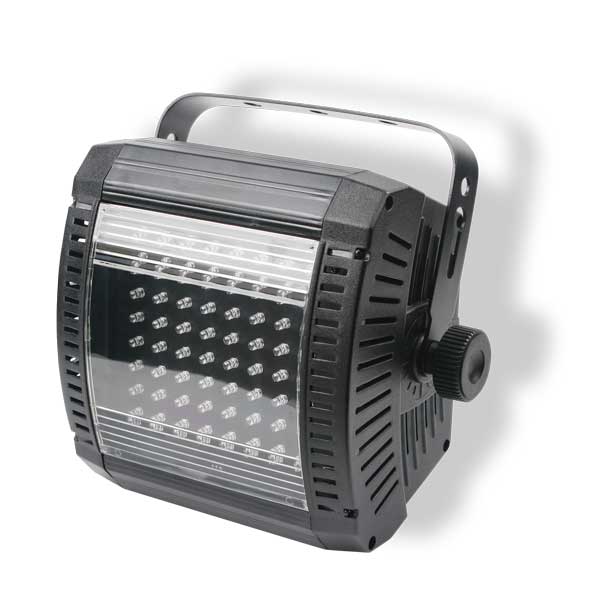

]]> DJ LED Strobe (SF-L50) https://www.jyunyao.com.tw/?p=155 https://www.jyunyao.com.tw/?p=155#respond Sat, 23 Oct 2010 08:37:31 +0000 http://www.jyunyao.com.tw/?p=155 DJ LED Strobe (SF-L50) is the standard accessory device used by mobile DJ and mini party. DJ LED Strobe can emit a powerful flash with a flash rate of 0.5~20Hz. The novelty design of fashionable external is made from fashionable plastic materials and catches public eyes. It can be adjusted speed with Knob on back to simply create different flash effect.


Specifications

Model SF-L50
Illuminant 64*0.1W White LED
Flash Speed 0.5Hz~20Hz
Connector N/A
Control Mode Plug and Play
Dimension (LxWxH) 238x140x220mm
Weight 1.0kg
Applicable Voltages 120V/60HZ or 230V/50Hz
Fuse T0.5A/250V
Pulse Power 6.1W

Key To Symbols

Video

Sorry, Not yet available

Manual Download

SF-L50,SF-L150 Manual V1.1

]]> https://www.jyunyao.com.tw/?feed=rss2&p=155 0 Brilliance LED Strobe (SF-L120) https://www.jyunyao.com.tw/?p=154 https://www.jyunyao.com.tw/?p=154#respond Sat, 23 Oct 2010 08:28:37 +0000 http://www.jyunyao.com.tw/?p=154 The creation of Brilliance LED Strobe (SF-L120) is combining concepts of originality and entertainment. It also opened a new face in the market for commercial use of strobes. The compact and exquisite outline of Brilliance LED Strobe is suitable for use in family parties, window displays of commercial products, holiday celebrations, and other decorative usages. The manually adjustable flash rate of 0.5~20 Hz flash makes the use of SF-L120 even more functional. With this kind of simple and compact design, SF-L120 has a high flash power of low consumption and long life.

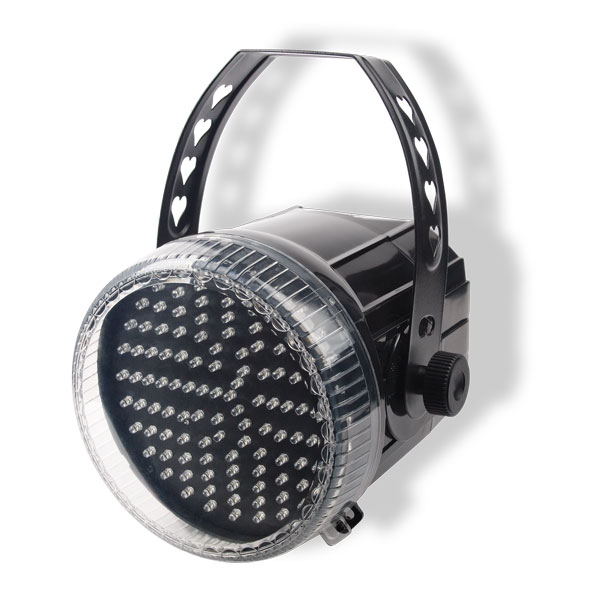

SF-L120-effect.jpg SF-L1201.jpg

Specifications

Model. SF-L120
Illuminant 120*0.1W White LED
Flash Speed 0.5Hz~20Hz
Connector N/A
Control Mode Plug and Play
Dimension (LxØ) 230xØ240mm
Weight 1.08kg
Applicable Voltages 120V/60HZ or 230V/50Hz
Fuse T0.5A/250V
Pulse Power 13.4W

Key To Symbols

Video

Sorry, Not yet available

Manual Download

SF-L120 Manual V1.0

]]> https://www.jyunyao.com.tw/?feed=rss2&p=154 0 Rays LED Strobe (SF-L150F) https://www.jyunyao.com.tw/?p=153 Sat, 23 Oct 2010 08:27:22 +0000 http://www.jyunyao.com.tw/?p=153 Rays LED Strobe is the standardized equipment for enhancing the atmosphere of a party. Rays LED Strobe can emit powerful flash by a flash rate of 0.5Hz~20Hz. It uses the green energy led source and it can input the synchronous control of the analog signal. Thanks to the popular plastic material, the fashionable appearance comes into being. The design is cut-edging and slightly-handling, which would attract all the people as a whole. Rays LED Strobe can be used with the one-channel LED strobe controller (SF-L01CX) to provide simple operation mode to that saves a lot of time.


Specifications

Model SF-L150F
Illuminant 168*0.1W White LED
Flash Speed 0.5Hz~20Hz
Connector 1/4” (6.35mm)mono microphone jack
Control Mode 0~10 DC trigger
Dimension (LxWxH) 238x140x220mm
Weight 1.07kg
Applicable Voltages 120V/60HZ or 230V/50Hz
Fuse T0.5A/250V
Power Consumption 17.3W
Applicable Controller SF-L01CX

Key To Symbols

Video

Manual Download

SF-L150F Manual V1.2

]]>
