The Atmos 1000 also has convenient features such as a visible fog fluid level built-in to the rear of the unit to see how much fluid is in the tank, and a LED heating indicator system that changes colors depending on whether the fogger is heating up or ready to use.

This fogger produces 3500 cubic feet of fog per minute, has a built-in internal tank with 0.9L capacity. This machine uses water-based fog fluid only.

AF-1000-view1.jpg AF-1000.jpg

Features

  • 650W compact high output fog machine
  • Visible fog fluid level indicator on rear
  • High performance pump for optimum output
  • Special heating element design that uses an oil type transmission pipeline system to minimize the possibility clogging
  • LED heating indicator system in tank: Red = Heating; Green=Ready to use
  • Fog Output: 3500 (cu.ft/min)
  • Internal fog fluid tank: 0.9 Liter
  • Single yoke to mount on a wall or from trussing bracket
  • Only use high quality, water-based fog fluid

Specifications

Name ATMOS 1000
Item No. AF-1000
Heater Power 650W
Power Consumption 700W
FUSE(120V) T10A/250V
FUSE(230V,240V) T5A/250V
Warm Up time(min) 4
Fog Output (cu.ft/min) 3500
Tank (liters) 0.9L
Bracket YES
Dimensions (LxWxH W/Handle) 88x152x170 mm
Weight (kg) without controller 2.8 kg
Voltage 120V,230V,240V 50/60Hz
Matching Controller (Included) RC-2N
Matching Controller (Optional) LC-2N

Key To Symbols

Video

Sorry, Not yet available

Further Information

]]> DEO-400 https://www.jyunyao.com.tw/?p=617 Wed, 22 Dec 2010 06:55:46 +0000 http://www.jyunyao.com.tw/?p=617 MOBILITY FOG MACHINE The miniature, lightweight 400W/800W fog machine are new models of thermal conductivity type fog machine specially designed for commercial market. After passing various stringent environment simulation tests and safety specification certification, this mobility foggers swept the fog machine market with a fresh new look. Its mechanized production and strict processing control ensured conformity to quality control that is why 400W/800W fog machines have a very stable quality. With respect to strong demand for security by the commercial market, the new design of this mobility fog machine specifically targeted the triple safety protection. Even if there are damages in some parts of the machine, it can still give the safest protection and provide customers with maximum safety. With puffing flow (output) of around 2000 (400W) and 3500 (800W) cu.ft/min, 400W/800W foggers are very suitable for use in small exhibitions, family parties, mini bars or small commercial spaces.

DEO-400.jpg DEO-400S1.jpg

Features

  • A special heating element design that prevents blockage, giving years of reliable use.
  • A wide-angle fog output, which use of jointless oil transmission pipeline system minimizes the possibility of blockage.
  • An easy-to-use design made for convenient operation in various settings
  • Mobility, compact and lightweight exterior.
  • Direct thermal protection
  • Its fully automatic mechanical production provided stable quality.
  • Triple safety protection gives consumers more security.
  • High-performance pump for great fog output.
  • Can directly be used with line controller LC-2X.

Specifications

Model No DEO-400/400S
Color Black/Silver
Power 230W
Fuse (120V) 5A
Fuse (230V) 3A
Heating Time (minute) 4.5
Output (cu. ft/min) 2000
Tank (liters) 0.6L
Handle Included
Voltage 120V,230V,240V 50/60Hz
Dimensions (LxWxH   W/Handle) 235 x148x174 mm
Weight (kg) 2.2
Matching Controller(Included) LC-2X

Key To Symbols

Video

Sorry, Not yet available

]]> DEO-800 https://www.jyunyao.com.tw/?p=616 https://www.jyunyao.com.tw/?p=616#respond Wed, 22 Dec 2010 06:54:38 +0000 http://www.jyunyao.com.tw/?p=616 MOBILITY FOG MACHINE The miniature, lightweight 400W/800W fog machine are new models of thermal conductivity type fog machine specially designed for commercial market. After passing various stringent environment simulation tests and safety specification certification, this mobility foggers swept the fog machine market with a fresh new look. Its mechanized production and strict processing control ensured conformity to quality control that is why 400W/800W fog machines have a very stable quality. With respect to strong demand for security by the commercial market, the new design of this mobility fog machine specifically targeted the triple safety protection. Even if there are damages in some parts of the machine, it can still give the safest protection and provide customers with maximum safety. With puffing flow (output) of around 2000 (400W) and 3500 (800W) cu.ft/min, 400W/800W foggers are very suitable for use in small exhibitions, family parties, mini bars or small commercial spaces.

DEO-800.jpg DEO-800S1.jpg

Features

  • A special heating element design that prevents blockage, giving yearsof reliable use.
  • A wide-angle fog output, which use of jointless oil transmission pipeline system minimizes the possibility of blockage.
  • An easy-to-use design made for convenient operation in various settings
  • Mobility, compact and lightweight exterior.
  • Direct thermal protection
  • Its fully automatic mechanical production provided stable quality.
  • Triple safety protection gives consumers more security.
  • High-performance pump for great fog output.
  • Can directly be used with line controller LC-2X.

Specifications

Model No DEO-800/800S
Color Black/Silver
Power 450W
Fuse (120V) 8A
Fuse (230V) 5A
Heating Time (minute) 5
Output (cu. ft/min) 3500
Tank (liters) 0.6L
Handle Included
Voltage 120V,230V,240V 50/60Hz
Dimensions (LxWxH  W/Handle) 235x148x174 mm
Weight (kg) 2.4
Matching Controller(Included) LC-2X

Key To Symbols

Video

Sorry, Not yet available

]]> https://www.jyunyao.com.tw/?feed=rss2&p=616 0 GUSTO-400 https://www.jyunyao.com.tw/?p=614 https://www.jyunyao.com.tw/?p=614#respond Wed, 22 Dec 2010 06:49:05 +0000 http://www.jyunyao.com.tw/?p=614 The miniature, lightweight 400W/800W fog machine are new models of thermal conductivity type fog machine specially designed for commercial market. After passing various stringent environment simulation tests and safety specification certification, this mobility foggers swept the fog machine market with a fresh new look. Its mechanized production and strict processing control ensured conformity to quality control that is why 400W/800W fog machines have a very stable quality. With respect to strong demand for security by the commercial market, the new design of this mobility fog machine specifically targeted the triple safety protection. Even if there are damages in some parts of the machine, it can still give the safest protection and provide customers with maximum safety. With puffing flow (output) of around 2000 (400W) and 3500 (800W) cu.ft/min, 400W/800W foggers are very suitable for use in small exhibitions, family parties, mini bars or small commercial spaces.

GT400-E.jpg GT400.jpg

Features

  • A special heating element design that prevents blockage, giving yearsof reliable use.
  • A wide-angle fog output, which use of jointless oil transmission pipeline system minimizes the possibility of blockage.
  • An easy-to-use design made for convenient operation in various settings
  • Mobility, compact and lightweight exterior.
  • Direct thermal protection
  • Its fully automatic mechanical production provided stable quality.
  • Triple safety protection gives consumers more security.
  • High-performance pump for great fog output.
  • Can directly be used with line controller LC-2X.

Specifications

Model No GT-400
Color Black&Silver
Power 230W
Fuse (120V) 5A
Fuse (230V) 3A
Heating Time (minute) 4.5
Output (cu. ft/min) 2000
Tank (liters) 0.6L
Handle Included
Voltage 120V,230V,240V 50/60Hz
Dimensions (LxWxH   W/Handle) 243 x148x177 mm
Weight (kg) 2.2
Matching Controller(Included) LC-2X

Key To Symbols

Video

Sorry, Not yet available

Manual Download

GT-400, GT-800 Manual V1.3

]]> https://www.jyunyao.com.tw/?feed=rss2&p=614 0 GUSTO-800 https://www.jyunyao.com.tw/?p=613 https://www.jyunyao.com.tw/?p=613#respond Wed, 22 Dec 2010 06:48:14 +0000 http://www.jyunyao.com.tw/?p=613 The miniature, lightweight 400W/800W fog machine are new models of thermal conductivity type fog machine specially designed for commercial market. After passing various stringent environment simulation tests and safety specification certification, this mobility foggers swept the fog machine market with a fresh new look. Its mechanized production and strict processing control ensured conformity to quality control that is why 400W/800W fog machines have a very stable quality. With respect to strong demand for security by the commercial market, the new design of this mobility fog machine specifically targeted the triple safety protection. Even if there are damages in some parts of the machine, it can still give the safest protection and provide customers with maximum safety. With puffing flow (output) of around 2000 (400W) and 3500 (800W) cu.ft/min, 400W/800W foggers are very suitable for use in small exhibitions, family parties, mini bars or small commercial spaces.

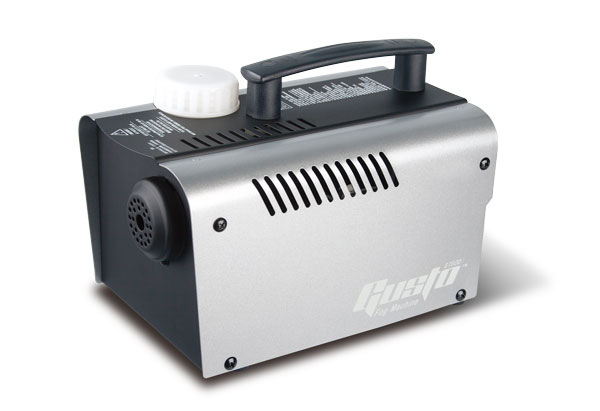

GT800-E.jpg GT8001.jpg

Features

  • A special heating element design that prevents blockage, giving years
    of reliable use.
  • A wide-angle fog output, which use of jointless oil transmission pipeline system minimizes the possibility of blockage.
  • An easy-to-use design made for convenient operation in various settings
  • Mobility, compact and lightweight exterior.
  • Direct thermal protection
  • Its fully automatic mechanical production provided stable quality.
  • Triple safety protection gives consumers more security.
  • High-performance pump for great fog output.
  • Can directly be used with line controller LC-2X.

Specifications

Model No GT-800
Color Black&Silver
Power 450W
Fuse (120V) 8A
Fuse (230V) 5A
Heating Time (minute) 5
Output (cu. ft/min) 3500
Tank (liters) 0.6L
Handle Included
Voltage 120V,230V,240V 50/60Hz
Dimensions (LxWxH  W/Handle) 243 x148x177 mm
Weight (kg) 2.4
Matching Controller(Included) LC-2X

Key To Symbols

Video

Sorry, Not yet available

Manual Download

GT-400, GT-800 Manual V1.3

]]> https://www.jyunyao.com.tw/?feed=rss2&p=613 0 Fog Myth (FM-800) https://www.jyunyao.com.tw/?p=212 Thu, 28 Oct 2010 06:09:00 +0000 http://www.jyunyao.com.tw/?p=212 FOG MYTH, a master of atmosphere inspiration, presents a new range of fog machines: FM-800, FM-1200, and FM-1800. Boasting a unique heating system that reduce dramatically the heating time, Fog Myth series can produce fog powerfully and steadily without making any noise.
Produced under stringent quality control system, Fog Myth series aim to provide maximum operation safety for users. The professional “heavy-duty” fog machines of FM-1200 & FM-1800 are equipped with low-fluid sensors, which will automatically stop pumping once fluid level is too low.
FOG MYTH series are well matched with our line controllers (LC-1, LC-2S), remote controllers (RC-1, RC-2), timing controllers (TC-1, TC-2), and DMX controller (DMX-2) and are perfect for nightclubs, exhibition halls, and ballrooms etc. Use our high quality water-based fog liquid to optimize the performance of Fog Myth series.

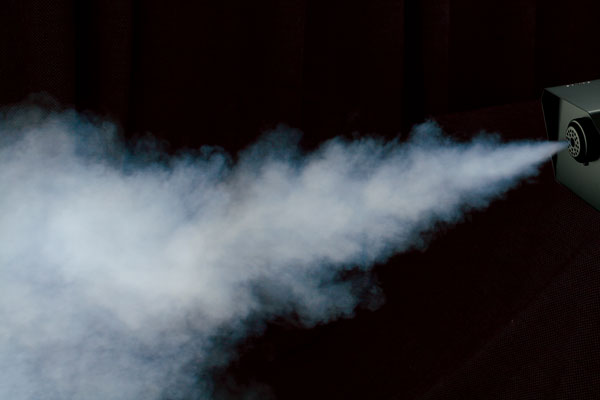

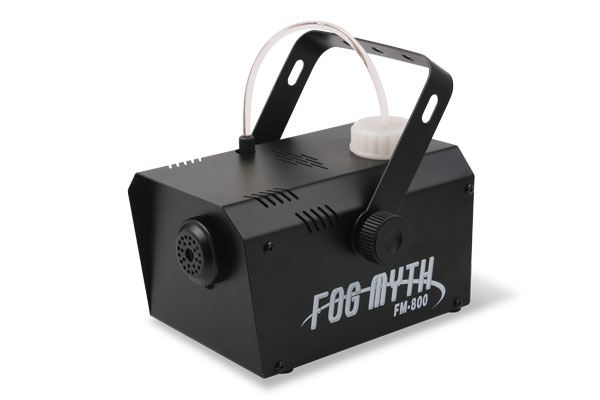

FM-800-E.jpg FM-800.jpg

Features

  • 700W heater
  • 5 minute heat up time
  • Approx. 3500 cu. Ft/min output
  • 0.9 liter fluid container
  • Direct thermal protection
  • Operate by line controller (LC-2S), remote controller (RC-2), timing controller(TC-2)

Specifications

Model No FM-800
Color Black
POWER 700W
FUSE(120V) 10A
FUSE(230V,240V) 5A
Warm Up time(min) 5
Output (cu.ft/min) 3500
Tank (liters) 0.9L
Voltage 120V/60Hz
230V/50Hz
Dimensions (LxWxH   W/O Bracket) 235x149x136mm
Weight (kg) 3.25
Control Included NO

Key To Symbols

Video

Sorry, Not yet available

Manual Download

FM-800 Manual V1.0

]]> Fog Myth (FM-1200) https://www.jyunyao.com.tw/?p=211 Thu, 28 Oct 2010 06:05:28 +0000 http://www.jyunyao.com.tw/?p=211 FOG MYTH, a master of atmosphere inspiration, presents a new range of fog machines: FM-800, FM-1200, and FM-1800. Boasting a unique heating system that reduce dramatically the heating time, Fog Myth series can produce fog powerfully and steadily without making any noise.
Produced under stringent quality control system, Fog Myth series aim to provide maximum operation safety for users. The professional “heavy-duty” fog machines of FM-1200& FM-1800 are equipped with low-fluid sensors, which will automatically stop pumping once fluid level is too low.
FOG MYTH series are well matched with our line controllers (LC-1, LC-2S), remote controllers (RC-1,RC-2), timing controllers (TC-1, TC-2), and DMX controller (DMX-2) and are perfect for nightclubs, exhibition halls, and ballrooms etc. Use our high quality water-based fog liquid to optimize the performance of Fog Myth series.

FM-1200-E.jpg FM-1200.jpg

Features

  • 1100W heater.
  • Equipped with low-fluid sensors, which will automatically stop pumping once fluid level is too low.
  • 8 minute heat up time.
  • Approx. 7000 cu. Ft/min output.
  • 2.5 liter fluid container.
  • Direct thermal protection.
  • Operate by line controller (LC-1), remote controller (RC-1), timing controller(TC-1), or DMX controller(DMX-2).

Specifications

Model No FM-1200
Color Black
POWER 1100W
FUSE(120V) 12A
FUSE(230V,240V) 7A
Warm Up time(min) 8
Output (cu.ft/min) 7000
Tank (liters) 2.5L
Voltage 120V/60Hz 230V/50Hz
Dimensions (LxWxH   W/O Bracket) 310x220x161mm
Weight (kg) 6.10
Control Included NO

Key To Symbols

Video

Sorry, Not yet available

]]> Fog Myth (FM-1800) https://www.jyunyao.com.tw/?p=210 https://www.jyunyao.com.tw/?p=210#respond Thu, 28 Oct 2010 06:01:08 +0000 http://www.jyunyao.com.tw/?p=210 FOG MYTH, a master of atmosphere inspiration, presents a new range of fog machines: FM-800, FM-1200, and FM-1800. Boasting a unique heating system that reduce dramatically the heating time, Fog Myth series can produce fog powerfully and steadily without making any noise.
Produced under stringent quality control system, Fog Myth series aim to provide maximum operation safety for users. The professional “heavy-duty” fog machines of FM-1200 & FM-1800 are equipped with low-fluid sensors, which will automatically stop pumping once fluid level is too low.
FOG MYTH series are well matched with our line controllers (LC-1, LC-2S), remote controllers (RC-1, RC-2), timing controllers (TC-1, TC-2), and DMX controller (DMX-2) and are perfect for nightclubs, exhibition halls, and ballrooms etc. Use our high quality water-based fog liquid to optimize the performance of Fog Myth series.

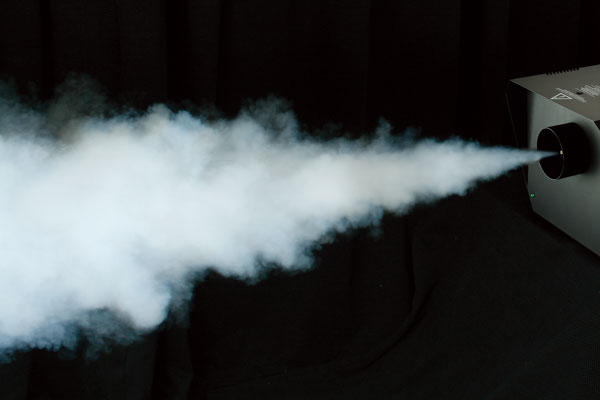

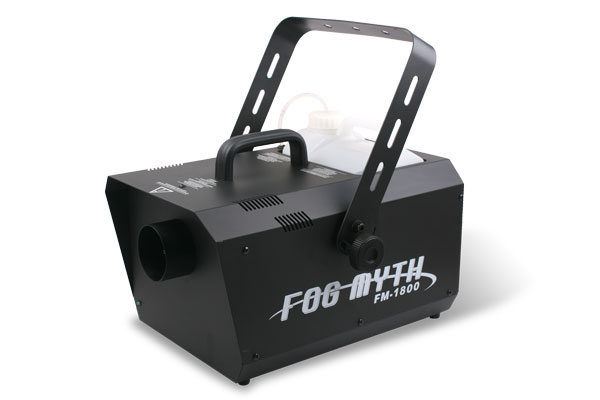

FM-1800-E.jpg FM-1800.jpg

Features

  • 1600W heater
  • Equipped with low-fluid sensors, which will automatically stop pumping once fluid level is too low.
  • 8 minute heat up time.
  • 8 minute heat up time
  • Approx. 21000 cu. Ft/min output
  • 5 liter fluid container
  • Direct thermal protection
  • Operate by line controller (LC-1), remote controller (RC-1), timing controller(TC-1)or DMX controller(DMX-2)

Specifications

Model No FM-1800
Color Black
POWER 1600W
FUSE(120V) NFB 20A
FUSE(230V,240V) NFB 10A
Warm Up time(min) 8
Output (cu.ft/min) 21000
Tank (liters) 5L
Voltage 120V/60Hz

230V/50Hz
Dimensions (LxWxH   W/O Bracket) 435x280x295mm (W/Handle)
Weight (kg) 11.6
Control Included NO

Key To Symbols

Video

Sorry, Not yet available

Further Information

]]> https://www.jyunyao.com.tw/?feed=rss2&p=210 0 Atmos (AF-800/800S) https://www.jyunyao.com.tw/?p=209 https://www.jyunyao.com.tw/?p=209#respond Thu, 28 Oct 2010 05:56:51 +0000 http://www.jyunyao.com.tw/?p=209 ATMOS, a versatile effect-creator, produces a series of high-quality fog machine: AF-800/800S, AF-900/900S,
AF-1200/1200S and AF-1700/1700S .
The smart and compact series feature the unique die-cast-aluminum heater system for faster and more efficient heat transfer, allowing them to produce dense fog continuously and reducing the possibility of nozzle blockage to minimum. The unique design makes ATMOS series ultra-quiet during operation and also saves much space for a larger oil tank.
The series are ideal for theatres, show rooms, ballrooms and clubs use, operating with our line controllers (LC-1, LC-2S), remote controllers (RC-1, RC-2), timing controllers (TC-1, TC-2), or DMX controller (DMX-2) for powerful fogging effect. Our high quality water-based fog liquid is optimized for use with ATMOS fog machines.

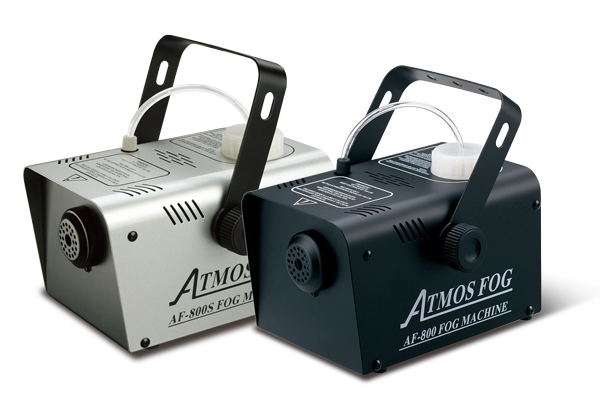

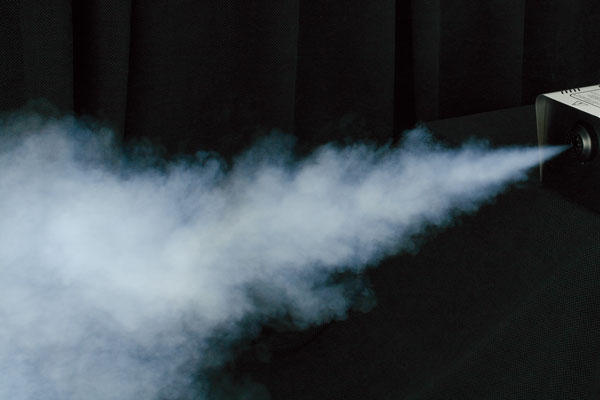

AF800-E.jpg AF-800S1.jpg

Features

  • 700W heater
  • 5 minute heat up time
  • Approx. 3500 cu. Ft/min output
  • 0.9 liter fluid container
  • Direct thermal protection
  • Operate by line controller (LC-2S), remote controller (RC-2), timing controller(TC-2)

Specifications

Model No AF-800/800S
Color Black/Silver
POWER 700W
FUSE(120V) 10A
FUSE(230V,240V) 5A
Warm Up time(min) 5
Output (cu.ft/min) 3500
Tank (liters) 0.9L
Voltage 120V/60Hz, 230V/50Hz
Dimensions (LxWxH   W/O Bracket) 235x149x136mm
Weight (kg) 3.3
Control Included NO

Key To Symbols

Video

Sorry, Not yet available

Further Information

]]> https://www.jyunyao.com.tw/?feed=rss2&p=209 0 Atmos (AF-900/900S) https://www.jyunyao.com.tw/?p=208 Thu, 28 Oct 2010 05:52:09 +0000 http://www.jyunyao.com.tw/?p=208 ATMOS, a versatile effect-creator, produces a series of high-quality fog machine: AF-800/800S, AF-900/900S,
AF-1200/1200S and AF-1700/1700S .
The smart and compact series feature the unique die-cast-aluminum heater system for faster and more efficient heat transfer, allowing them to produce dense fog continuously and reducing the possibility of nozzle blockage to minimum. The unique design makes ATMOS series ultra-quiet during operation and also saves much space for a larger oil tank.
The series are ideal for theatres, show rooms, ballrooms and clubs use, operating with our line controllers (LC-1, LC-2S), remote controllers (RC-1, RC-2), timing controllers (TC-1, TC-2), or DMX controller (DMX-2) for powerful fogging effect. Our high quality water-based fog liquid is optimized for use with ATMOS fog machines.

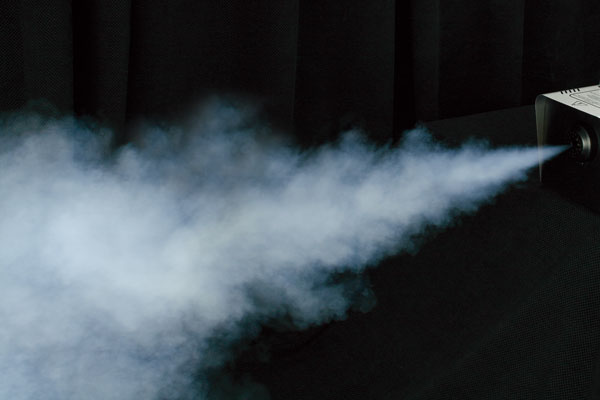

AF900-E.jpg AF-900S1.jpg

Features

  • 700W heater
  • 5 minute heat up time
  • Approx. 3500 cu. Ft/min output
  • 0.9 liter fluid container
  • Direct thermal protection
  • Operate by line controller (LC-1), remote controller (RC-1), timing controller(TC-1), or DMX controller(DMX-2)

Specifications

Model No AF-900/900S
Color Black/Silver
POWER 700W
FUSE(120V) 10A
FUSE(230V,240V) 5A
Warm Up time(min) 5
Output (cu.ft/min) 3500
Tank (liters) 0.9L
Voltage 120V/60Hz, 230V/50Hz
Dimensions (LxWxH   W/O Bracket) 235x149x136mm
Weight (kg) 3.3
Control Included NO

Key To Symbols

Video

Sorry, Not yet available

Further Information

]]>
