JyunYao Technology Co., Ltd. https://www.jyunyao.com.tw 竣耀科技 Fri, 12 Sep 2025 06:22:19 +0000 zh-CN hourly 1 https://wordpress.org/?v=4.5.3 Porter Faze 3.0C (FZ-3.0C) https://www.jyunyao.com.tw/?p=1181 Thu, 14 Jul 2016 08:43:52 +0000 http://www.jyunyao.com.tw/?p=1181 FZ-3.0C-view.jpg FZ-3(120V)a.jpg

Features

  • Smooth and stable smoke output control from 5-100%. In accordance with different wind power, the smoke can be adjusted from minimum to 100%. Suitable for operation in any locations.
  • 5-100% fan speed adjustment. Quiet and smooth fan let the smoke disperse unknowingly. 100% high fan speed let the smoke be thin and even, and expand more quickly throughout the location.
  • Primary heating up takes very short time, only about 45 seconds, shorter than general faze machines.
  • The machine can be installed for up spray or side spray.
  • Unique design of 5.6-liter liquid tank let FZ-3.0C have no worry of oil leaking when being operated up spray or side spray. Quick connector makes replacement direct and easier when performance is ongoing.
  • DMX on board, 3 DMX modes for choice; 1CH, 2CH, 4CH, operate by any additional DMX controller.
  • Built-in multi-function operation control. Built-In timer control, manual fogging control and continuous fogging control.
  • FZ-3.0C is equipped with 0~45 degree adjustable air deflector.
  • Heavy-duty. Able to keep working long time.
  • Self-cleaning function: The machine design of machine stops working after a delay of 30 seconds, automatically clear the tubing of the remaining liquid.
  • Design of expediting liquid supply: When low smoke output, it takes more time for supplying the liquid for the first time. The function of manual fogging is suggested to be used for expediting liquid supply and save time.
  • Easy understanding blue LCD screen and intelligent design of software control.
  • Flight case designed with thick and excellent material. Liquid tank designed for quick fixing and with protection against getting loosen during transportation. All details are required.
  • Can be connected with additional DMX wifi module.

>>> Read More

]]> Porter Faze 3.0 (FZ-3.0) https://www.jyunyao.com.tw/?p=1178 Thu, 14 Jul 2016 08:33:16 +0000 http://www.jyunyao.com.tw/?p=1178 FZ-3.0 FZ-3.0

Features

  • Smooth and stable smoke output control from 5-100%.  In accordance with different wind power, the smoke can be adjusted from minimum to 100%.  Suitable for operation in any locations.
  • 5-100% fan speed adjustment. Quiet and smooth fan let the smoke disperse unknowingly. 100% high fan speed let the smoke be thin and even, and expand more quickly throughout the location.
  • Primary heating up takes very short time, only about 45 seconds, shorter than general faze machines.
  • The machine can be installed for up spray or forward spray.
  • Unique design of 5.6 liter liquid tank let FZ-3.0 have no worry of oil leaking when being operated up spray or side spray. Quick connector makes replacement direct and easier when performance is ongoing.
  • DMX on board, 3 DMX modes for choice; 1CH, 2CH, 4CH, operate by any additional DMX controller.
  • Multi-function operation control. Built-In timer control, manual fogging control and continuous fogging control.
  • Heavy-duty.  Able to keep working long time.
  • Self-cleaning function: The machine design of machine stops working after a delay of 30 seconds, automatically clear the tubing of the remaining liquid.
  • Design of expediting liquid supply: When low smoke output, it takes more time for supplying the liquid for the first time. The function of manual fogging is suggested to be used for expediting liquid supply and save time.
  • Easy understanding LCD display and intelligent design of software control.
  • Rugged high-quality shape designed with strong bracket. Liquid tank designed for quick fixing and with protection against getting loosen during transportation. All details are required.

>>> Read More

]]> DJ Fazer (FZ-2.0) https://www.jyunyao.com.tw/?p=1176 Thu, 14 Jul 2016 05:32:16 +0000 http://www.jyunyao.com.tw/?p=1176 FZ-2.0 FZ-2.0

Features

  • Smooth and stable smoke output control from 5-100%.  In accordance with different wind power, the smoke can be adjusted from minimum to 100%.  Suitable for operation in any locations.
  • 5-100% fan speed adjustment. Quiet and smooth fan let the smoke disperse unknowingly. 100% high fan speed let the smoke be thin and even, and expand more quickly throughout the location.
  • Primary heating up takes very short time, only about 75 seconds, shorter than general faze machines.
  • DMX on board, 2 CH DMX, operate by any additional DMX controller.
  • Multi-function operation control. Built-In timer control, manual fogging control and continuous fogging control.
  • FZ-2.0 is equipped with adjustable smoke vent.
  • Self-cleaning function: The machine design of machine stops working after a delay of 30 seconds, automatically clear the tubing of the remaining liquid.
  • Design of expediting liquid supply: When low smoke output, it takes more time for supplying the liquid for the first time. The function of manual fogging is suggested to be used for expediting liquid supply and save time.
  • Easy understanding LED display and intelligent design of software control.
  • Heavy-duty.  Able to keep working long time.

Specifications

Name DJ Faze machine
Item No. FZ-2.0
Housing configuration Black & Blue iron case
Heater Power 700W
Consumption 720W
DMX512 CH. 2CH
Built-in Function.
  • Timing Fogging
  • Continuous Fogging
FUSE(120V) 10A/250V
FUSE(230V,240V) 5A/250V
Display LED Display
Tank(liters) 2L
Fog Output (cu.ft/min) 9000
Warm Up time(seconds) 75s
Fluid Consumption (ml/min) MAX. output 10ml/min
Date Connection 3P XLR
Power Connection IEC Socket
Low Fluid Shutdown Yes
Bracket Yes
Dimensions/mm(LxWxH w/o bracket) 378 x 317 x 310mm
Weight(kg) 6
Voltage 120V,230V,240V 50/60Hz

Video

Sorry, Not yet available

Further Information

]]> Porter Faze (FZ-3.0) https://www.jyunyao.com.tw/?p=1173 Thu, 14 Jul 2016 03:47:23 +0000 http://www.jyunyao.com.tw/?p=1173 FZ-3.0 FZ-3.0

Features

  • Smooth and stable smoke output control from 5-100%.  In accordance with different wind power, the smoke can be adjusted from minimum to 100%.  Suitable for operation in any locations.
  • 5-100% fan speed adjustment. Quiet and smooth fan let the smoke disperse unknowingly. 100% high fan speed let the smoke be thin and even, and expand more quickly throughout the location.
  • Primary heating up takes very short time, only about 45 seconds, shorter than general faze machines.
  • The machine can be installed for up spray or forward spray.
  • Unique design of 5.6 liter liquid tank let FZ-3.0 have no worry of oil leaking when being operated up spray or side spray. Quick connector makes replacement direct and easier when performance is ongoing.
  • DMX on board, 3 DMX modes for choice; 1CH, 2CH, 4CH, operate by any additional DMX controller.
  • Multi-function operation control. Built-In timer control, manual fogging control and continuous fogging control.
  • Heavy-duty.  Able to keep working long time.
  • Self-cleaning function: The machine design of machine stops working after a delay of 30 seconds, automatically clear the tubing of the remaining liquid.
  • Design of expediting liquid supply: When low smoke output, it takes more time for supplying the liquid for the first time. The function of manual fogging is suggested to be used for expediting liquid supply and save time.
  • Easy understanding LCD display and intelligent design of software control.
  • Rugged high-quality shape designed with strong bracket. Liquid tank designed for quick fixing and with protection against getting loosen during transportation. All details are required.

Specifications

Name Porter DMX Faze machine
Item No. FZ-3.0
Housing configuration Black iron case
Heater Power 1400W
Consumption 1500W
DMX512 CH. 1CH, 2CH, or 4CH
Built-in Function.
  • Timing Fogging
  • Continuous Fogging
  • Manual Fogging
FUSE(120V) NFB 16A
FUSE(230V,240V) 10A/250V
Display Blue LCD Screen
Tank(liters) 5.6L
Fog Output (cu.ft/min) 15000
Warm Up time(seconds) 45s
Fluid Consumption (ml/min) MAX. output 16ml/min
Date Connection 3P or 5P XLR
Power Connection Direct Power Cord
Low Fluid Shutdown Yes
Bracket Yes
Dimensions/mm(LxWxH w/o bracket) 394 x 434 x 253mm
Weight(kg) 10.6
Voltage 120V,230V,240V 50/60Hz

Video

Sorry, Not yet available

Further Information

]]> DJ Faze 2.0 (FZ-2.0) https://www.jyunyao.com.tw/?p=1183 Thu, 14 Jul 2016 02:06:24 +0000 http://www.jyunyao.com.tw/?p=1183 FZ-2.0 FZ-2.0

Features

  • Smooth and stable smoke output control from 5-100%.  In accordance with different wind power, the smoke can be adjusted from minimum to 100%.  Suitable for operation in any locations.
  • 5-100% fan speed adjustment. Quiet and smooth fan let the smoke disperse unknowingly. 100% high fan speed let the smoke be thin and even, and expand more quickly throughout the location.
  • Primary heating up takes very short time, only about 75 seconds, shorter than general faze machines.
  • DMX on board, 2 CH DMX, operate by any additional DMX controller.
  • Multi-function operation control. Built-In timer control, manual fogging control and continuous fogging control.
  • FZ-2.0 is equipped with adjustable smoke vent.
  • Self-cleaning function: The machine design of machine stops working after a delay of 30 seconds, automatically clear the tubing of the remaining liquid.
  • Design of expediting liquid supply: When low smoke output, it takes more time for supplying the liquid for the first time. The function of manual fogging is suggested to be used for expediting liquid supply and save time.
  • Easy understanding LED display and intelligent design of software control.
  • Heavy-duty.  Able to keep working long time.

>>> Read More

]]> Porter Faze (FZ-3.0C) https://www.jyunyao.com.tw/?p=1161 Thu, 27 Aug 2015 01:26:50 +0000 http://www.jyunyao.com.tw/?p=1161 FZ-3.0C-view.jpg FZ-3(120V)a.jpg

Features

  • Smooth and stable smoke output control from 5-100%. In accordance with different wind power, the smoke can be adjusted from minimum to 100%. Suitable for operation in any locations.
  • 5-100% fan speed adjustment. Quiet and smooth fan let the smoke disperse unknowingly. 100% high fan speed let the smoke be thin and even, and expand more quickly throughout the location.
  • Primary heating up takes very short time, only about 45 seconds, shorter than general faze machines.
  • The machine can be installed for up spray or side spray.
  • Unique design of 5.6-liter liquid tank let FZ-3.0C have no worry of oil leaking when being operated up spray or side spray. Quick connector makes replacement direct and easier when performance is ongoing.
  • DMX on board, 3 DMX modes for choice; 1CH, 2CH, 4CH, operate by any additional DMX controller.
  • Built-in multi-function operation control. Built-In timer control, manual fogging control and continuous fogging control.
  • FZ-3.0C is equipped with 0~45 degree adjustable air deflector.
  • Heavy-duty. Able to keep working long time.
  • Self-cleaning function: The machine design of machine stops working after a delay of 30 seconds, automatically clear the tubing of the remaining liquid.
  • Design of expediting liquid supply: When low smoke output, it takes more time for supplying the liquid for the first time. The function of manual fogging is suggested to be used for expediting liquid supply and save time.
  • Easy understanding blue LCD screen and intelligent design of software control.
  • Flight case designed with thick and excellent material. Liquid tank designed for quick fixing and with protection against getting loosen during transportation. All details are required.
  • Can be connected with additional DMX wifi module.

Specifications

Name Porter DMX Faze machine
Item No. FZ-3.0C
Housing configuration With flight case
Heater Power 1400W
Consumption 1500W
DMX512 CH. 1CH, 2CH, or 4CH
Built-in Function.
  • Timing Fogging
  • Continuous Fogging
  • Manual Fogging
FUSE(120V) NFB 16A
FUSE(230V,240V) 10A/250V
Display Blue LCD Screen
Tank(liters) 5.6L
Fog Output (cu.ft/min) 15000
Warm Up time(seconds) 45s
Fluid Consumption (ml/min) MAX. output 16ml/min
Date Connection 3P or 5P XLR
Power Connection PowerCON
Low Fluid Shutdown Yes
Bracket No
Dimensions/mm(LxWxH w/o bracket) 533 x 387 x 249mm
Weight(kg) 21.3
Voltage 120V,230V,240V 50/60Hz

Video

Sorry, Not yet available

Further Information

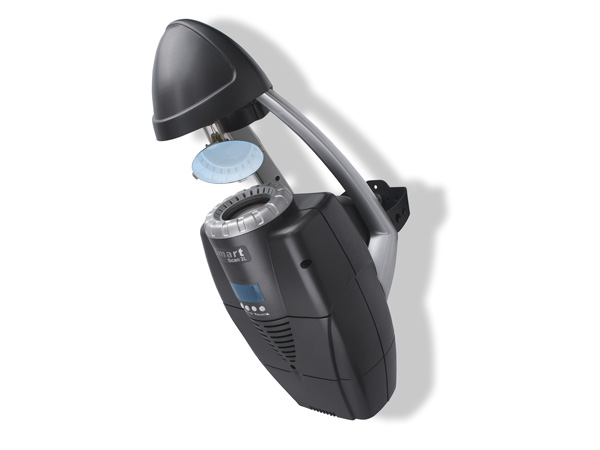

]]> SMART LED SCAN (SSC-3L) https://www.jyunyao.com.tw/?p=1031 Fri, 06 Feb 2015 08:02:07 +0000 http://www.jyunyao.com.tw/?p=1031 The creative Smart LED Scan excites the market with its high-quality performance, amazing economic benefits and fashionable designs. Equipped with 30W good quality white LED, switching power and Backlight LED display, and supported by standard DMX control, master/slave control and stand-alone control systems, Smart LED Scan is a reliable assistant for any excellent performance..

SSC-3L SSC-3L

Features

  • SSC-3L is equipped with 30W white LED of high quality. Better brightness. Extremely long-life light source (>20,000 hr. Rated), no bother of bulb replacement.
  • Unique and patented pan-tilt high speed scanning mirror module.
  • 11 colors +open on one wheel, 9 gobos +open on another wheel, precision in stepper motor moving mirror projection.
  • LED control displays operating DMX setting, built-in function selection.
  • USITT standard DMX control, master/slave control and stand-alone control.
  • Excellent cooling system.
  • Stylish plastic housing design.

Specifications

Model No. Smart LED Scan (SSC-3L)
Illuminant 30W white LED
Gobos+Colors 11 colors + open
9 gobos + open + black out
(two wheels)
Motor Stepping motor
Effect Strobe 0.5~12fps
Gobo & Color change
Scan Mirror
DMX Channels 6
Audio Control (internal mic) YES
Dimensions (LxWxH) 460x185x195mm
Weight 3.1kg
Voltages Available AC100~AC240/50Hz/60Hz
Fuse T2A/250V
Power Consumption 60W

Effect

SSC-3L SSC-3L

Key To Symbols

Video

Manual Download

Sorry, Not yet available

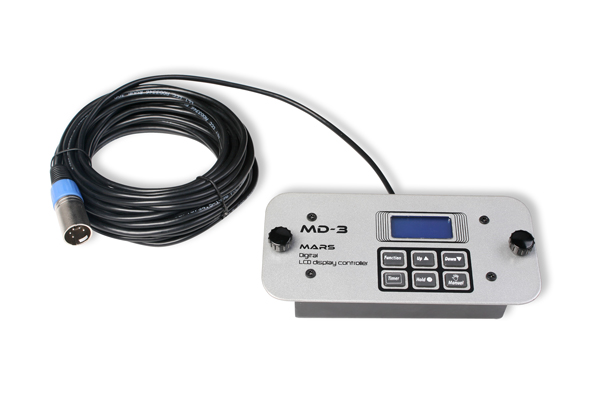

]]> MD-3 https://www.jyunyao.com.tw/?p=1025 Tue, 18 Nov 2014 09:01:48 +0000 http://www.jyunyao.com.tw/?p=1025 MD-3 is a metal LCD Display controller of Timing and Volume Control, simultaneously capacitating for DMX512 setting function. It simply controls fogging output, puffing interval and duration. Master/Slave control of various units is functional. Cable length is 10M with 5pin XLR connector.

Controller-For-Fog-Machine-DC-3S.jpg MD-3

FUNCTION: Select first DMX address, Interval, Duration, Volume, Master, Channel, then have the numerical value changed by using UP and DOWN buttons.

DMX address: Setting of DMX address, pressing UP/Down button at the same time have the number return to”0”.

Interval: Setting of Interval time from 10s~250s, effective as starting the Timer function.

Duration: Setting of Duration time from 1s~15s, effective as starting the Timer function.

Volume: Setting of fogging volume from 10% ~ 100%, effective as starting the Timer function.

Master: When connecting all Fogs by DMX, set this unit to ON as the Master giving order. They are all controlled by the Timer, Hold, Manual in the display. Any other DMX controller be excluded at this moment, nor does other Master set to ON. Channel becomes the single one, DMX address all set to 001.

Channel: Switching DMX as one or three channels. Only “Volume” function if with single channel.

Specifications

Model MD-3
Cable Length 10 M
Connector 5 Pin XLR
Function LCD DMX Control – DMX address, Interval, Duration,
Volume, Master, Channel setting.
Dimensions (L x W x H) 164x76x33mm
Weight 800g
Compatible with) MX-1800, MX-3500

Key To Symbols

Video

Sorry, Not yet available

Further Information

]]> ATMOS FOG (AF-1000) https://www.jyunyao.com.tw/?p=948 Fri, 21 Mar 2014 08:47:56 +0000 http://www.jyunyao.com.tw/?p=948 The Atmos 1000 is a 650W compact, high output fog machine with new advances in technology. It has a special heating element design that uses an oil type transmission throughout the pipeline to prevent clogging. It is also equipped with a high performance pump system for optimum output.

The Atmos 1000 also has convenient features such as a visible fog fluid level built-in to the rear of the unit to see how much fluid is in the tank, and a LED heating indicator system that changes colors depending on whether the fogger is heating up or ready to use.

>>> Read More

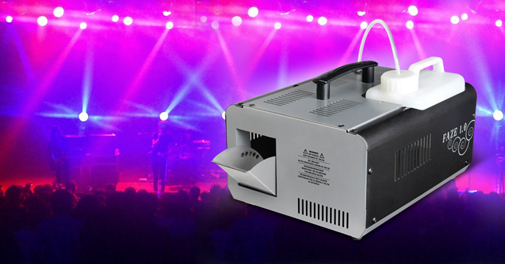

]]> FAZE 1.0 (FZ-1.0) https://www.jyunyao.com.tw/?p=946 Fri, 21 Mar 2014 06:46:38 +0000 http://www.jyunyao.com.tw/?p=946 FAZE 1.0 is high efficiency of heating. It is compact for easy movement. It can make volumes of harmless and dry haze that is perfectly suitable for matching with any kind of traditional lightings, LED lightings and Lasers in any performance.

FAZE 1.0 is equipped with 0~45 degree adjustable smoke vent, die-cut heating module, quiet fan and big liquid tank. The heating module of high efficiency allows FAZE 1.0 to make volumes of haze in a short time and to disperse the haze evenly in the whole space. When detected low liquid by the patented sensor device, power cutting functions automatically to prevent interior spare parts from damage. The fan is quiet and effective. The dry and long lasting haze effect makes FAZE 1.0 excellent for matching with any kinds of lightings. TC-4 timer controller is further options to elevate the utility of FAZE 1.0.

>>> Read More

]]>
