Strobe – JyunYao Technology Co., Ltd. https://www.jyunyao.com.tw 竣耀科技 Fri, 12 Sep 2025 06:22:19 +0000 zh-CN hourly 1 https://wordpress.org/?v=4.5.3 Screw-in Strobe (FL-005) https://www.jyunyao.com.tw/?p=608 https://www.jyunyao.com.tw/?p=608#respond Wed, 22 Dec 2010 06:20:33 +0000 http://www.jyunyao.com.tw/?p=608 The cute and adorable strobes can be used as decorations for window display of shops, facades of clubs/bars, and for other decoration usages.
This type of miniature flash lamp always attracts attention of the public wherever it is applied. The diamond-like octagon case design allows the flash to be refracted into different angles thereby emitting diamond-like sparkles. The long lasting flash lamp consumes 10 watts per flash with the standard flash rate of 1 flash per 3 seconds.


Specifications

Model No FL-005
Lamp ST-005
Flash Rate 1 flash per 1-3 seconds
Dimmer N/A
Signal Connector N/A
Control Mode Plug and play
Dimension ( LxØ) 110×25 mm
Weight 0.05kg
Applicable Voltages 120V/60Hz or 230V/50Hz
Fuse Internal
Pulse Power Consumption 10W

Video

Sorry, Not yet available

Manual Download

Sorry, Not yet available

]]> https://www.jyunyao.com.tw/?feed=rss2&p=608 0 Plug-in Strobe (FL-006) https://www.jyunyao.com.tw/?p=607 https://www.jyunyao.com.tw/?p=607#respond Wed, 22 Dec 2010 06:20:01 +0000 http://www.jyunyao.com.tw/?p=607 The cute and adorable strobes can be used as decorations for window display of shops, facades of clubs/bars, and for other decoration usages.
This type of miniature flash lamp always attracts attention of the public wherever it is applied. The diamond-like octagon case design allows the flash to be refracted into different angles thereby emitting diamond-like sparkles. The long lasting flash lamp consumes 10 watts per flash with the standard flash rate of 1 flash per 3 seconds.


Specifications

Model No FL-006
Lamp ST-006
Flash Rate 1 flash per 1-3 seconds
Dimmer N/A
Signal Connector N/A
Control Mode Plug and play
Dimension (LxØ) 110×25 mm
Weight 0.05kg
Applicable Voltages 120V/60Hz or 230V/50Hz
Fuse Internal
Pulse Power Consumption 10W

Video

Sorry, Not yet available

Manual Download

Sorry, Not yet available

]]> https://www.jyunyao.com.tw/?feed=rss2&p=607 0 Zap Strobe (SF-35) https://www.jyunyao.com.tw/?p=606 https://www.jyunyao.com.tw/?p=606#respond Wed, 22 Dec 2010 06:18:55 +0000 http://www.jyunyao.com.tw/?p=606 The creation of Strobe (SF-35) combines concepts of originality and entertainment. It also opens up a new way in the market for commercial
use of strobes. The compact and exquisite outline of SF-35 is suitable for use in family parties, window displays of commercial products, holiday celebrations, and other decorative usages. The manually adjustable flash rate of 1-12 flashes per second makes the use of SF-35 even more functional. With this kind of simple and compact design, SF-35 has a high flash power of 35 watts. These strobes can flash at least 3 million times, and they have four colored plastic pieces (red, orange, green and blue) that give users various colorful flashes for pleasure anytime. That is why Zap Strobe (SF-35), which has both features of functionality and entertainment, is our super star product.

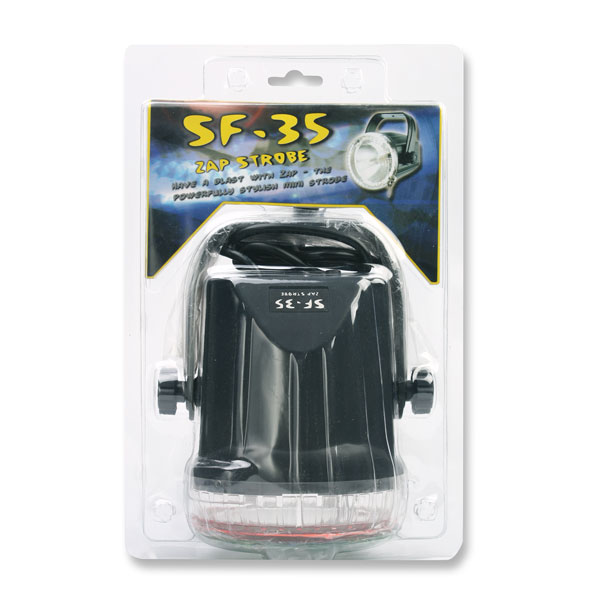

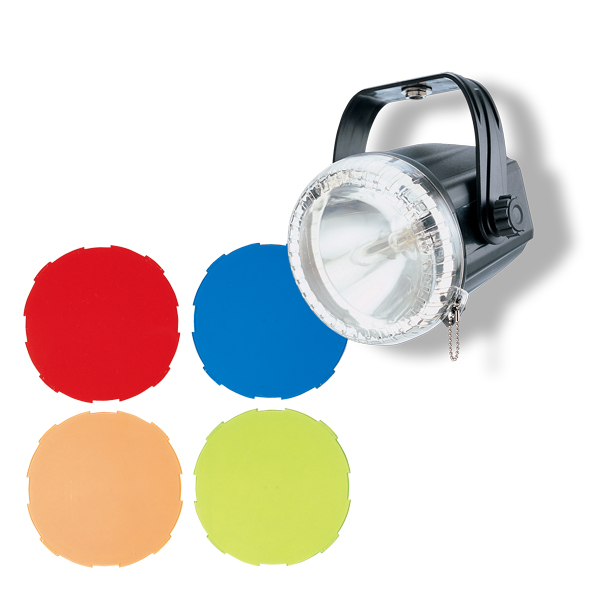

SF-35.jpg SF-35-view.jpg

Specifications

Model No SF-35
Lamp ST-35
Flash Rate 1-12 fps
Dimmer N/A
Signal Connector N/A
Control Mode Plug and play
Dimension (LxØ) w/o bracket 154×132 mm
Weight 0.65kg
Applicable Voltages 120V/60Hz or 230V/50Hz
Fuse T1A/250V Internal
Pulse Power Consumption 30W

Video

Sorry, Not yet available

Manual Download

Sorry, Not yet available

]]> https://www.jyunyao.com.tw/?feed=rss2&p=606 0 Mini Strobe (SF-35X) https://www.jyunyao.com.tw/?p=605 https://www.jyunyao.com.tw/?p=605#respond Wed, 22 Dec 2010 06:16:42 +0000 http://www.jyunyao.com.tw/?p=605 A must for young rockers, mobile DJs and eye-catching displays, the Mini Strobe is CE approved. JyunYao engineered for reliability and long life, this 35W xenon strobe lasts for years. And it features an attractive plastic case, moveable handle and 1-12 per second flash rate control on back.

SF-35X4Color.jpg SF-35X.jpg

Specifications

Model No SF-35X
Lamp ST-35
Flash Rate 1-12 fps
Dimmer N/A
Signal Connector N/A
Control Mode Plug and play
Dimension (LxWxH) 110x 61x55mm
Weight 190g
Applicable Voltages 120V/60Hz or 230V/50Hz
Fuse T1A/250V Internal
Pulse Power Consumption 30W

Video

Sorry, Not yet available

Manual Download

Sorry, Not yet available

]]> https://www.jyunyao.com.tw/?feed=rss2&p=605 0 DJ Strobe I (SF-50) https://www.jyunyao.com.tw/?p=202 https://www.jyunyao.com.tw/?p=202#respond Thu, 28 Oct 2010 02:25:54 +0000 http://www.jyunyao.com.tw/?p=202 DJ Strobe I (SF-50) is the standard accessory device used by mobile DJ and mini party. DJ Strobe I can emit a 50 watts powerful flash with a flash rate of 1-18 times per second. Synchronous control can be achieved through the use of standard helical xenon lamp and input of analog signal. The novel external design is made of fashionable plastic materials and catches public eye. It can be used with one-channel strobe controller (SF-01CX) or four-channel strobe controller (SF-34CX) or DS-1 simple DMX digital controller to create a simple operation mode that saves a lot of time.

DJ-Strobe-I-(SF-50).jpg SF-50.jpg

Specifications

Model No SF-50
Lamp ST-50
Flash Rate 1-18 fps
Dimmer N/A
Signal Connector 1/4″ (6.35mm) mono microphone jack
Control Mode 0-10V DC trigger
Dimension (LxWxH) 238x140x220mm
Weight 1.375kg
Applicable Voltages 120V/60Hz or 230V/50Hz
Fuse 1A/250V
Pulse Power Consumption 50W
Applicable Controller SF-01CX or SF-34CX or DS-1

Key To Symbols

Video

Sorry, Not yet available

Manual Download

Sorry, Not yet available

]]> https://www.jyunyao.com.tw/?feed=rss2&p=202 0 DJ Strobe II (SF-80) https://www.jyunyao.com.tw/?p=201 https://www.jyunyao.com.tw/?p=201#respond Thu, 28 Oct 2010 02:19:46 +0000 http://www.jyunyao.com.tw/?p=201 DJ Strobe II (SF-80) is the standard accessory device for mobile DJ and mini party. DJ Strobe II can emit an 80 watts powerful flash by a flash rate of 1-18 times per second. Synchronous control can be achieved through the use of standard helical xenon lamp and input of analog signal. Cute and novel external design made of fashionable plastic materials enables DJ Strobe II to attract everybody’s attention. It can be use with one-channel strobe controller (SF-01CX) or four-channel strobe controller (SF-34CX) or DS-1 simple DMX digital controller to create a simple operation mode that saves a lot of time.


Specifications

Model No SF-80
Lamp ST-80
Flash Rate 1-18 fps
Dimmer N/A
Signal Connector 1/4″ (6.35mm) mono microphone jack
Control Mode 0-10V DC trigger
Dimension (LxWxH) 238x140x220mm
Weight 1.4kg
Applicable Voltages 120V/60Hz or 230V/50Hz
Fuse 1A/250V
Pulse Power Consumption 80W
Applicable Controller SF-01CX or SF-34CX or DS-1

Key To Symbols

Video

Sorry, Not yet available

Manual Download

Sorry, Not yet available

]]> https://www.jyunyao.com.tw/?feed=rss2&p=201 0 Rock Strobe (SF-150/150D) https://www.jyunyao.com.tw/?p=200 https://www.jyunyao.com.tw/?p=200#respond Thu, 28 Oct 2010 02:12:39 +0000 http://www.jyunyao.com.tw/?p=200 ROCK Strobe is the standardized equipment for enhancing the atmosphere of a party. ROCK Strobe can emit up to 150 watts powerful flash by a flash rate of 1-18 times per second. It uses the standardized I type flash lamp and it can input analog signal for synchronous control. It catches public attention with the fashionable appearance made of popular plastic materials, and the streamlined and easy-handling design. Rock Strobe can be of analogical control or of DMX signal control. For SF-150, it can be used either with the one-channel strobe controller (SF-01CX) or with the four-channel strobe controller (SF-34CX) or with DS-1 simple DMX digital controller to control the flashing rate. For SF-150D, it can be used with different kinds of DMX controllers for programming.


Specifications

Model No SF-150
Lamp ST-150
Flash Rate 1-18 fps
Dimmer N/A
Signal Connector 1/4″ (6.35mm) mono microphone jack
Control Mode 0-10V DC trigger
Dimension (LxWxH) 278x140x220mm
Weight 1.71kg
Applicable Voltages 120V/60Hz or 230V/50Hz
Fuse 1.6A/250V or 1A/250V
Pulse Power Consumption 150W
Applicable Controller SF-01CX or SF-34CX or DS-1
Model No SF-150D
Lamp ST-150
Flash Rate 1-18 fps
Dimmer N/A
Signal Connector 3 pin XLR
Control Mode 1CH, DMX512 signal
Dimension (LxWxH) 278x140x220mm
Weight 1.71kg
Applicable Voltages 120V/60Hz or 230V/50Hz
Fuse 1.6A/250V or 1A/250V
Pulse Power Consumption 150W

Key To Symbols(For SF-150)



Key To Symbols (For SF-150D)

Video

Sorry, Not yet available

Manual Download

Sorry, Not yet available

]]> https://www.jyunyao.com.tw/?feed=rss2&p=200 0 Rays Strobe (SF-300/300D) https://www.jyunyao.com.tw/?p=199 https://www.jyunyao.com.tw/?p=199#respond Wed, 27 Oct 2010 09:19:51 +0000 http://www.jyunyao.com.tw/?p=199 Rays Strobe is an indispensable standard accessory for medium and large ballrooms. With I-type xenon lamp, Rays Strobe can emit a 300 watt powerful flashes by a flashing rate of 1-18 times per second. Synchronous control can be achieved with input of analog signal. The unprecedented design of elegant streamline profile greatly attracts the public. Freewheeling adjustment function of flashing rate and powerfully rapid flashes excites the atmosphere. Rays Strobe can be of analogical control or of DMX signal control. For SF-300, it can be used either with the one-channel strobe controller (SF-01CX) or with the four-channel strobe controller (SF-34CX) or with DS-1 simple DMX digital controller to control the flashing rate. For SF-300D, it can be used with different kinds of DMX controllers for programming.


Specifications

Model No SF-300
Lamp ST-300
Flash Rate 1-18 fps
Dimmer N/A
Signal Connector 1/4″ (6.35mm) mono microphone jack
Control Mode 0-10V DC trigger
Dimension (LxWxH) 278x140x220mm
Weight 1.96kg
Applicable Voltages 120V/60Hz or 230V/50Hz
Fuse 5A/250V or 1.6A/250V
Pulse Power Consumption 300W
Applicable Controller SF-01CX or SF-34CX or DS-1
Model No SF-300D
Lamp ST-300
Flash Rate 1-18 fps
Dimmer N/A
Signal Connector 3 pin XLR
Control Mode 1CH, DMX512 signal
Dimension (LxWxH) 278x140x220mm
Weight 2.11kg
Applicable Voltages 120V/60Hz or 230V/50Hz
Fuse 5A/250V or 1.6A/250V
Pulse Power Consumption 300W

Key To Symbols (For SF-300)



Key To Symbols (For SF-300D)

Video

Sorry, Not yet available

Manual Download

Sorry, Not yet available

]]> https://www.jyunyao.com.tw/?feed=rss2&p=199 0 Blaze Compact Strobe (SF-1250/1250D) https://www.jyunyao.com.tw/?p=197 https://www.jyunyao.com.tw/?p=197#respond Wed, 27 Oct 2010 09:09:15 +0000 http://www.jyunyao.com.tw/?p=197 Blaze Compact Strobe of 1250W performs powerful flashes through an adjustable flashing rate of 1-18 times per second that shows its functional advantage. SF-1250 analog strobe has a built-in manual adjuster for flashing rate and a manual linear dimmer function,which are directly controlled by knobs at the rear panel. It can be also coordinated with the simple one-channel analogical controller.(SF-01CX) or with the four-channel analogical controller (SF-34CX) or with DS-1 simple DMX digital controller to control the flashing rate. The design of strengthened glass cover, sturdy hanging bracket, easy replacement of tube, and case of easy heat- dissipating makes SF-1250 suitable for use in any occasion. SF-1250 is definitely the first choice when powerful flashes, convenient adjustment of flash rate and a linear dimmer function are needed. In case DMX512 digital controller is required, Blaze Compact Strobe (SF1250D) will be the best choice. The dimmer function of digital programming makes SF-1250D even functionally more powerful. Other functions like build-in manual adjuster for flashing rate and manual dimmer function are similar to SF-1250.


Specifications

Model No SF-1250
Lamp ST-1250
Flash Rate 1-18 fps
Dimmer Manual
Signal Connector 1/4″ (6.35mm) mono microphone jack
Control Mode 0-10V DC trigger
Dimension (LxWxH) 400x204x138mm
Weight 2.78kg
Applicable Voltages 120V/60Hz
Fuse 10A NFB
Pulse Power Consumption 1250W
Applicable Controller SF-01CX or SF-34CX or DS-1
Model No SF-1250D
Lamp ST-1250
Flash Rate 1-18 fps
Dimmer DMX, programmable
Signal Connector 3 pin XLR
Control Mode 2CH, DMX512 signal
Dimension (LxWxH) 400x204x138mm
Weight 2.93kg
Applicable Voltages 120V/60Hz
Fuse 10A NFB
Pulse Power Consumption 1250W

Key To Symbols (For SF-1250)



Key To Symbols (For SF-1250D)

Video

Sorry, Not yet available

Manual Download

Sorry, Not yet available

]]> https://www.jyunyao.com.tw/?feed=rss2&p=197 0 Max Strobe (SF-2500/2500D) https://www.jyunyao.com.tw/?p=196 https://www.jyunyao.com.tw/?p=196#respond Wed, 27 Oct 2010 09:04:56 +0000 http://www.jyunyao.com.tw/?p=196 Max Strobe features a powerful 2500 watt flash by adjustable flashing rate of 1-18 times per second and manual linear dimmer control, which is directly controlled by the knob, or through the simple one-channel analogical controller (SF-01CX) or the four-channel analogical controller (SF-34CX)or DS-1 simple DMX digital controller. The design of strengthened glass cover, sturdy hanging bracket, easy replacement of tube and case of easy heat-dissipating makes the use of Max Strobe (SF-2500) ideal for big venues. In case powerful flashes, manual dimmer function and adjustable flashing rate are required, SF-2500 is definitely the best choice. Max Strobe (SF-2500D) is of DMX512 digital control. The dimmer function of digital programming makes SF-2500D’s functionally even more powerful. Other functions like build-in manual adjuster for flash rate and manual dimmer function are similar to SF-2500.


Specifications

Model No SF-2500
Lamp ST-2500
Flash Rate 1-18 fps
Dimmer Manual
Signal Connector 1/4″ (6.35mm) mono microphone jack
Control Mode 0-10V DC trigger
Dimension (LxWxH) 442x114x242mm
Weight 3.5kg
Applicable Voltages 230V/50Hz
Fuse 16A NFB
Pulse Power Consumption 2500W
Applicable Controller SF-01CX or SF-34CX or DS-1
Model No SF-2500D
Lamp ST-2500
Flash Rate 1-18 fps
Dimmer DMX, programmable
Signal Connector 3 pin XLR
Control Mode 2CH, DMX512 signal
Dimension (LxWxH) 442x114x242mm
Weight 3.47kg
Applicable Voltages 230V/50Hz
Fuse 16A NFB
Pulse Power Consumption 2500W

Key To Symbols (For SF-2500)



Key To Symbols (For SF-2500D)

Video

Sorry, Not yet available

Manual Download

Sorry, Not yet available

]]> https://www.jyunyao.com.tw/?feed=rss2&p=196 0
