Timer Controller – JyunYao Technology Co., Ltd. https://www.jyunyao.com.tw 竣耀科技 Fri, 12 Sep 2025 06:22:19 +0000 zh-CN hourly 1 https://wordpress.org/?v=4.5.3 SHZ-1C https://www.jyunyao.com.tw/?p=734 Sat, 15 Oct 2011 07:03:15 +0000 http://www.jyunyao.com.tw/?p=734 SHZ-1C controller is mainly used for controlling SHZ-400.

Controller-For-Fog-Machine-SHZ-1C.jpg SHZ-1C.jpg

Detailed functions as follows:

Function Instructions
TIMER ON/OFF Interval timing “on” or “off”
CONTROL ON/OFF Power “on” or “off”
HAZE Manual haze “on” or “off”
TIMER-LED (Yellow) Lighted, interval timing is “on”
CONTROL-LED (Red) Lighted, power is “on”
HAZE-LED (Green) Lighted, haze is on function
DURATION For adjusting duration of haze
12s-90s
INTERVAL For adjusting time of interval
13s-260s

Specifications

Model SHZ-1C
Cable Length 8 m
Connector 5 Pin XLR
Function 1. TIMER- on/off

2. CONTROL- on/off

3. HAZE

4. DURATION & INTERVAL
Voltage DC12V (From SHZ-400)
Dimensions (L x W x H) 123 x 66 x 35mm
Weight 0.32kg
Compatible with SHZ-400

Key To Symbols

Video

Sorry, Not yet available

Further Information

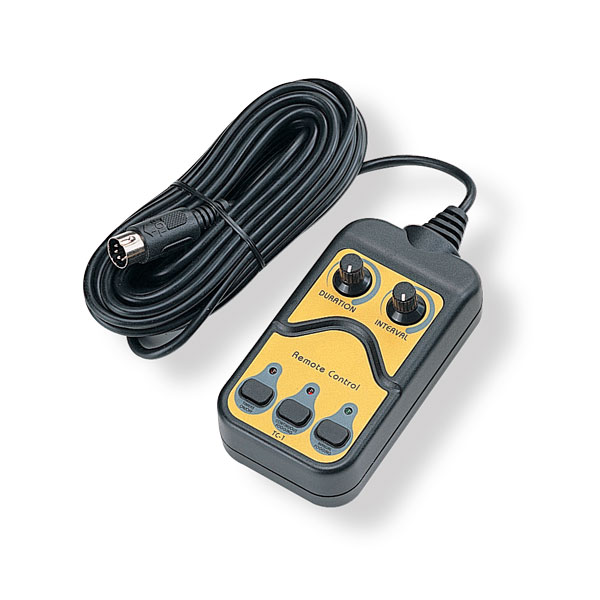

]]> TC-1 https://www.jyunyao.com.tw/?p=724 Sat, 15 Oct 2011 07:00:08 +0000 http://www.jyunyao.com.tw/?p=724 TC-1 timing controller is suitable for Atmos fog machine (AF-900(S)/1200(S)/1700(S)) & Fog Myth fog machine (FM-900/1200/1800).


Detailed functions as follows:

Function Instructions
TIMER ON/OFF Press the button; the timer of interval output stop and the upper red led will glow.
CONTINUOUS Press the button, the fog machine emits fog continuously and the upped red led will glow.
MANUAL Press the button, it allows the operation be controlled manually. After the machine has warmed up, the upper green led will glow.
DURATION 0.5s~10s±1s
INTERVAL 9s~280s±20s

Specifications

Model TC-1
Cable Length 8 m
Connector 5 Pin DIN
Function 1. Timer with interval, duration
2. Continuous fogging
3. Manual ON/OFF
Dimensions (L x W x H) 123 x 66 x 35mm
Weight 0.363 Kg
Compatible with AF-900/900S, AF-1200/1200S, AF-1700/1700S, FM-1200,FM-1800

Video

Sorry, Not yet available

Further Information

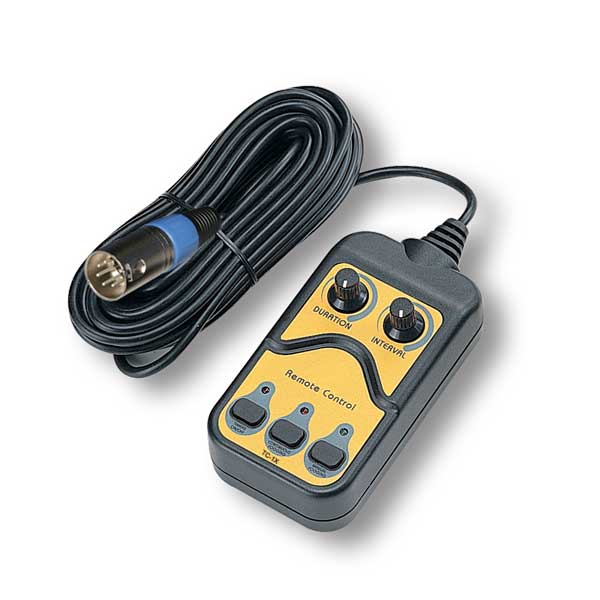

]]> TC-1X https://www.jyunyao.com.tw/?p=723 Sat, 15 Oct 2011 06:59:59 +0000 http://www.jyunyao.com.tw/?p=723 TC-1X timing controller is suitable for GT-1000 & CF-1500.


Detailed functions as follows:

Function Instructions
TIMER ON/OFF Press the button; the timer of interval output stop and the upper red led will glow.
CONTINUOUS Press the button, the fog machine emits fog continuously and the upped red led will glow.
MANUAL Press the button, it allows the operation be controlled manually. After the machine has warmed up, the upper green led will glow.
DURATION 0.5s~10s±1s
INTERVAL 9s~280s±20s

Specifications

Model TC-1X
Cable Length 8 m
Connector 5 Pin XLR
Function 1. Timer with interval, duration
2. Continuous fogging
3. Manual ON/OFF
Dimensions (L x W x H) 123 x 66 x 35mm
Weight 0.363 Kg
Compatible with GT-1000, CF-1500

Key To Symbols

Video

Sorry, Not yet available

Further Information

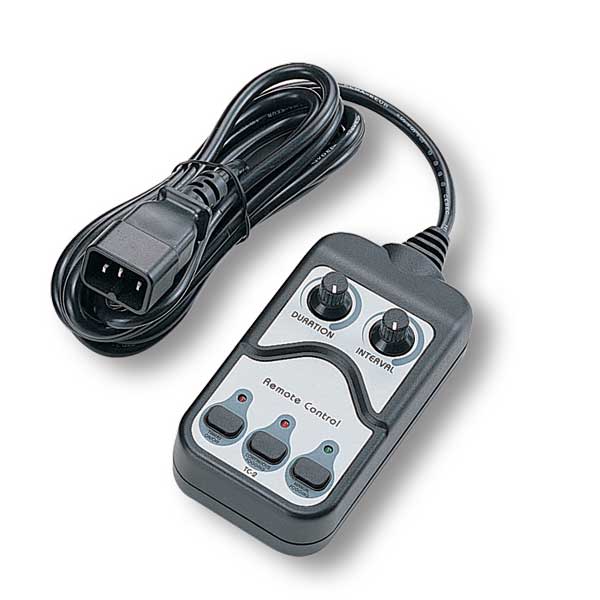

]]> TC-2 https://www.jyunyao.com.tw/?p=722 Sat, 15 Oct 2011 06:59:48 +0000 http://www.jyunyao.com.tw/?p=722 TC-2 timing controller is suitable for Atmos fog machine (AF-800/800S) & Fog Myth fog machine (FM-800).


Detailed functions as follows:

Function Instructions
TIMER ON/OFF Press the button; the timer of interval output stop and the upper red led will glow.
CONTINUOUS Press the button, the fog machine emits fog continuously and the upped red led will glow.
MANUAL Press the button, it allows the operation be controlled manually. After the machine has warmed up, the upper green led will glow.
DURATION 0.5s~10s±1s
INTERVAL 9s~280s±20s

Specifications

Model TC-2
Cable Length 3 m
Connector 3 Pin JY Plug
Function 1. Timer with interval, duration
2. Continuous fogging
3. Manual ON/OFF
Dimensions (L x W x H) 123 x 66 x 35mm
Weight 0.375 Kg
Compatible with AF-800,FM-800

Video

Sorry, Not yet available

Further Information

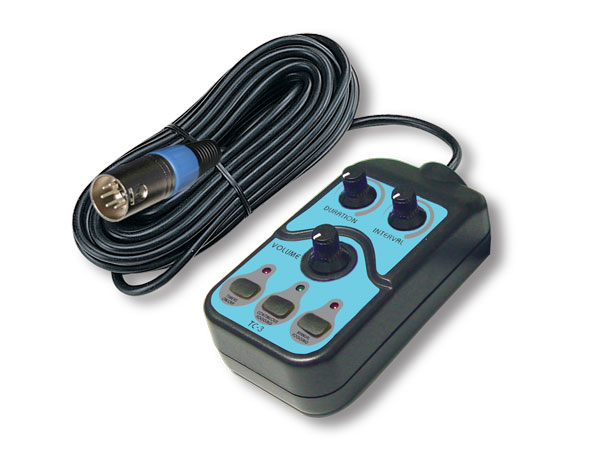

]]> TC-3 https://www.jyunyao.com.tw/?p=721 Sat, 15 Oct 2011 06:58:18 +0000 http://www.jyunyao.com.tw/?p=721 TC-3 timing controller is suitable for GT-1250.


Detailed functions as follows:

Function Instructions
TIMER ON/OFF Press the button; the timer of interval output stop and the upper red led will glow.
CONTINUOUS Press the button, the fog machine emits fog continuously and the upped red led will glow.
MANUAL Press the button, it allows the operation be controlled manually. After the machine has warmed up, the upper green led will glow.
DURATION 0.5s~10s±1s
INTERVAL 9s~280s±20s
VOLUME 0%~100%

Specifications

Model TC-3
Cable Length 8 m
Connector 5 Pin XLR
Function 1. Timer with interval, duration,volume
2. Continuous fogging
3. Manual ON/OFF
Dimensions (L x W x H) 123 x 66 x 35mm
Weight 0.375 Kg
Compatible with GT-1250

Key To Symbols

Video

Sorry, Not yet available

Further Information

]]> TC-3X https://www.jyunyao.com.tw/?p=773 Sat, 15 Oct 2011 06:58:08 +0000 http://www.jyunyao.com.tw/?p=773 TC-3X timing controller is suitable for AF-1700DX/AF-1700SDX,MX-1250,MX-1500.


Detailed functions as follows:

Functions Operation Instruction
TIMER：
Timing fogging		 Button for timing fogging: UP, timing fogging according to adjusted fogging volume. Red LED off.
CONTINUOUS:
Continuous fogging		 Button for continuous fogging: DOWN, timing fogging according to adjusted fogging volume. Red LED on
MANUAL：
Manual fogging		 Button for manual fogging: DOWN, fogging maximum output. (Green LED is for indicating completed heating and low liquid.)
DURATION:
For adjusting timing of continuous fogging		 0.5s-10s±1s
INTERVAL:
For adjusting timing of interval fogging		 3s-255s±1s
VOLUME:
For adjusting fogging volume		 10%-100%
5pin XLR connection cable 8m

Specifications

Model TC-3X
Cable Length 8 m
Connector 5 Pin XLR
Function 1. Timer with interval, duration,volume
2. Continuous fogging
3. Manual ON/OFF
Dimensions (L x W x H) 123 x 66 x 35mm
Weight 0.375 Kg
Compatible with AF-1700DX/AF-1700SDX,MX-1250,MX-1500

Key To Symbols

Video

Sorry, Not yet available

Further Information

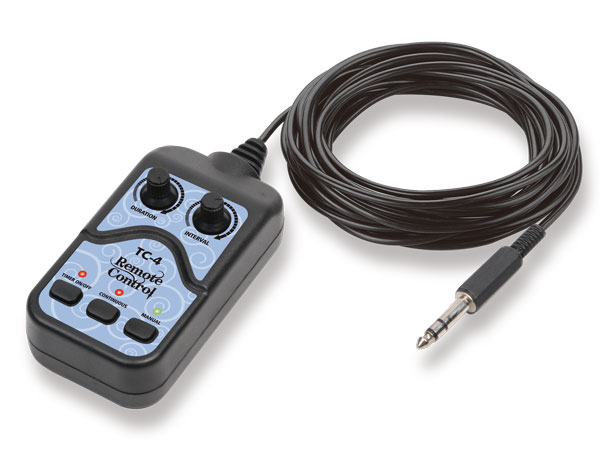

]]> TC-4 https://www.jyunyao.com.tw/?p=720 Sat, 15 Oct 2011 06:57:59 +0000 http://www.jyunyao.com.tw/?p=720 TC-4 controller is mainly used for controlling SHZ-80.


Detailed functions as follows:

Function Instructions
TIMER ON/OFF For timing interval puffing.
Pressed, timing of interval puffing stops, and the red led on the upside lights.
CONTINUOUS For continuous puffing.
Pressed, the fogger continues puffing, and the red led on the upside lights
MANUAL For manual puffing.
Pressed, the fogger functions manual puffing. The green led on the upside is to indicate heating and puffing. When puffing, the led turns off.
DURATION For adjusting duration of haze
0.5S – 8S ±1S
INTERVAL For adjusting time of interval
2S – 150S ±10S

Specifications

Model TC-4
Cable Length 8 m
Connector 1/4” mono Jack
Function 1. Timer with interval, duration
2. Continuous fogging
3. Manual ON/OFF
Dimensions (L x W x H) 123 x 66 x 35mm
Weight 0.375 Kg
Compatible with SHZ-80

Video

Sorry, Not yet available

Further Information

]]>
