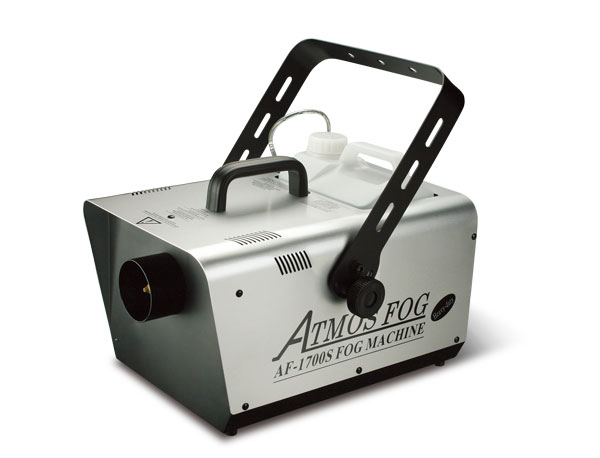

Atmos (AF-1700/1700S)

ATMOS, a versatile effect-creator, produces a series of high-quality fog machine: AF-800/800S, AF-900/900S, AF-1200/1200S and AF-1700/1700S .
The smart and compact series feature the unique die-cast-aluminum heater system for faster and more efficient heat transfer, allowing them to produce dense fog continuously and reducing the possibility of nozzle blockage to minimum. The unique design makes ATMOS series ultra-quiet during operation and also saves much space for a larger oil tank.
The series are ideal for theatres, show rooms, ballrooms and clubs use, operating with our line controllers (LC-1, LC-2S), remote controllers (RC-1, RC-2), timing controllers (TC-1, TC-2), or DMX controller (DMX-2) for powerful fogging effect. Our high quality water-based fog liquid is optimized for use with ATMOS fog machines.

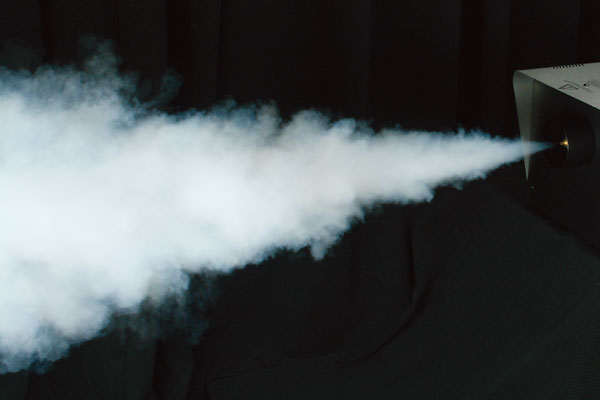

AF1700-E.jpg AF1700.jpg


  • 1600W heater
  • Equipped with low-fluid sensors, which will automatically stop pumping once fluid level is too low
  • 8 minute heat up time
  • Approx. 21000 cu. Ft/min output
  • 5 liter fluid container
  • Direct thermal protection
  • Operate by line controller (LC-1), remote controller (RC-1), timing controller(TC-1), or DMX controller(DMX-2)


Model No AF-1700/1700S
Color Black/Silver
FUSE(120V) NFB 20A
FUSE(230V,240V) NFB 10A
Warm Up time(min) 8
Output (cu.ft/min) 21000
Tank (liters) 5L
Voltage 120V/60Hz, 230V/50Hz
Dimensions (LxWxH   W/O Bracket) 435x280x295mm (W/Handle)
Weight (kg) 7
Control Included NO
