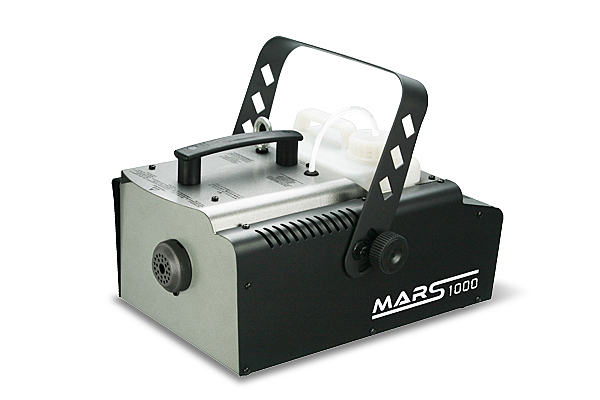

MARS Professional Fog Machine (MX-1000)

MARS series, DMX digital foggers, establish their eminence in the market with unique innovation and professional technique. Thanks to their high security and easy maintenance, MARS series are perfectly adapted for locations of professional performance.

Technically innovated and securely guaranteed, MX-1000 occupies an indispensable position in the market, characterizing easy maintenance and maximal operation safety.

With the innovative shell design featuring easy disassembly on three sides, MARS series make maintenance most convenient and simple. You can directly open the lateral sides to replace the heat module or the pump module, or open the rear side to take off the broken circuit module. The independent design of the three modules dramatically facilitates the maintenance.

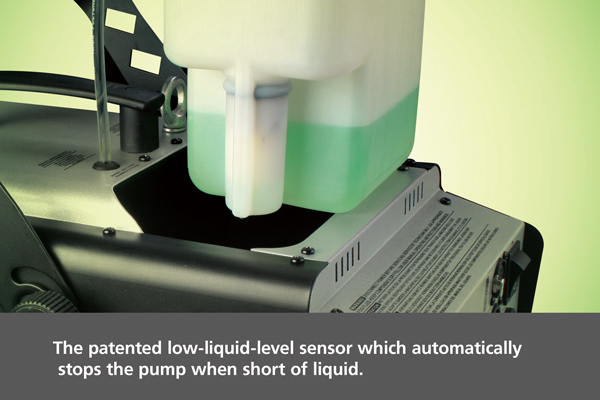

The patented liquid-level sensor automatically stops the pump from providing oil once it detects lack of liquid. This outstanding feature not only helps to avoid burning damage, enhancing operating security, but also successfully separates the oil tank from the mechanism, allowing the tank to be taken away from the fixture anytime without breaking any connection.

Quality guaranteed by professional technology, MX-1000 creates an amazing effect for a ball or an exhibition with its short heating time and large fogging volume.

MX-1000 MX-1000

Features

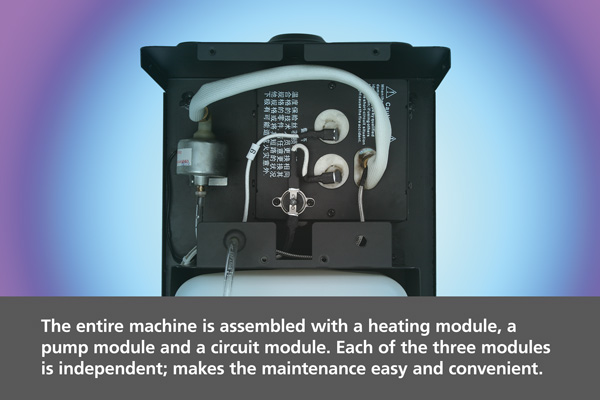

  • Sharp Modularization: The entire machine is assembled with a heating module, a pump module and a circuit module. Each of the three modules is independent, and that is what makes the maintenance so direct and easy.
  • Security: The die-cast heating module is perfectly covered and sealed with double-decked iron shell. Patented low-liquid sensor detects shortage of liquid and warns the pump to cut oil supply automatically so as to prevent from damaging.
  • High Efficiency: The die-cast heating module fastens heat transmission and therefore, shortens the heating cycle.
  • Convenience: MX-1000 is a DMX digital foggers which can be conveniently connected with other foggers and DMX stage equipment for operation by extra DMX controller. Besides, it can be operated by exteriorly connected controllers to do master/slave operation or normal control.
  • Humanized warning function for abnormal status: In case the fogger has any abnormal functioning, the status of tank will be indicating abnormal status as warning to let the user be aware of the problematic situation in time.
  • LED heating indicator system in tank: Red = Heating; Green=Ready to use; Flashing for both color= Out of liquid & other abnormal warnings.

Specifications

Model No MX-1000
Power 1000W
Fuse(120V) T12A/250V
Fuse(230V,240V) T6A/250V
Warm Up time(min) 4.5
Fog Output (cu.ft/min) 10000
Tank (liters) 2
Bracket YES
Dimensions (LxWxH W/Handle) 378x220x209mm
Weight (kg) 6kg
Voltage 120V, 230V, 240V 50/60Hz
DMX512 CH. DMX 1CH
Matching Controller (Included) LC-5

Special Presentation

MX-1000 MX-1000
