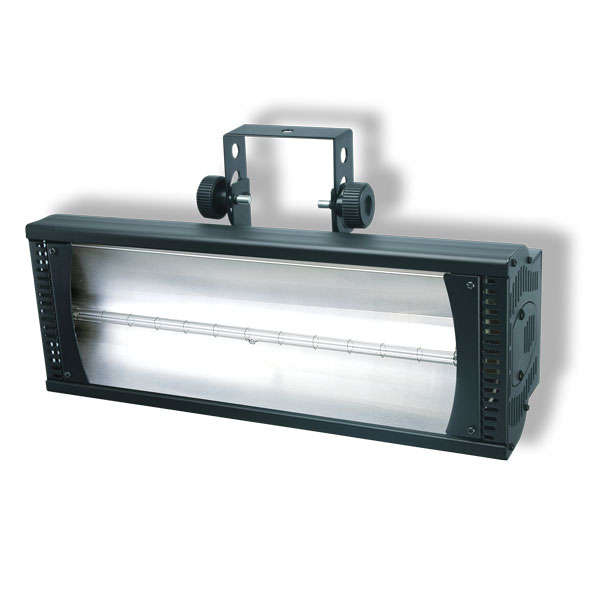

Max Strobe features a powerful 2500 watt flash by adjustable flashing rate of 1-18 times per second and manual linear dimmer control, which is directly controlled by the knob, or through the simple one-channel analogical controller (SF-01CX) or the four-channel analogical controller (SF-34CX)or DS-1 simple DMX digital controller. The design of strengthened glass cover, sturdy hanging bracket, easy replacement of tube and case of easy heat-dissipating makes the use of Max Strobe (SF-2500) ideal for big venues. In case powerful flashes, manual dimmer function and adjustable flashing rate are required, SF-2500 is definitely the best choice. Max Strobe (SF-2500D) is of DMX512 digital control. The dimmer function of digital programming makes SF-2500D’s functionally even more powerful. Other functions like build-in manual adjuster for flash rate and manual dimmer function are similar to SF-2500.
Specifications
Model No |
SF-2500 |
Lamp |
ST-2500 |
Flash Rate |
1-18 fps |
Dimmer |
Manual |
Signal Connector |
1/4″ (6.35mm) mono microphone jack |
Control Mode |
0-10V DC trigger |
Dimension (LxWxH) |
442x114x242mm |
Weight |
3.5kg |
Applicable Voltages |
230V/50Hz |
Fuse |
16A NFB |
Pulse Power Consumption |
2500W |
Applicable Controller |
SF-01CX or SF-34CX or DS-1 |
Model No |
SF-2500D |
Lamp |
ST-2500 |
Flash Rate |
1-18 fps |
Dimmer |
DMX, programmable |
Signal Connector |
3 pin XLR |
Control Mode |
2CH, DMX512 signal |
Dimension (LxWxH) |
442x114x242mm |
Weight |
3.47kg |
Applicable Voltages |
230V/50Hz |
Fuse |
16A NFB |
Pulse Power Consumption |
2500W |
Key To Symbols (For SF-2500)
Key To Symbols (For SF-2500D)
