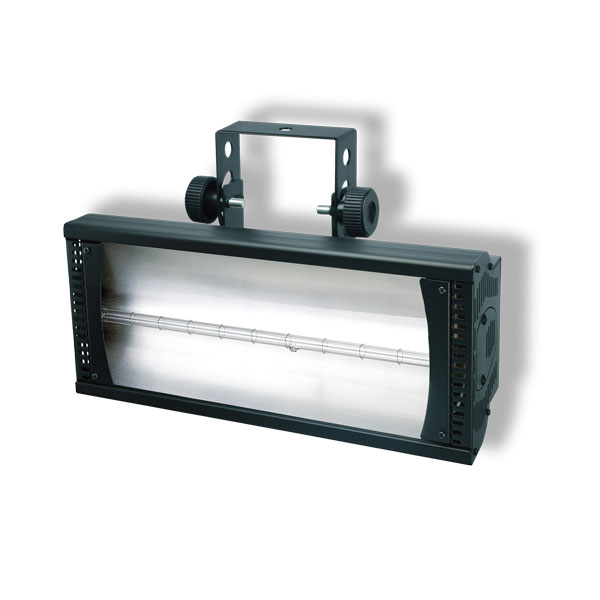

Blaze Compact Strobe of 1250W performs powerful flashes through an adjustable flashing rate of 1-18 times per second that shows its functional advantage. SF-1250 analog strobe has a built-in manual adjuster for flashing rate and a manual linear dimmer function,which are directly controlled by knobs at the rear panel. It can be also coordinated with the simple one-channel analogical controller.(SF-01CX) or with the four-channel analogical controller (SF-34CX) or with DS-1 simple DMX digital controller to control the flashing rate. The design of strengthened glass cover, sturdy hanging bracket, easy replacement of tube, and case of easy heat- dissipating makes SF-1250 suitable for use in any occasion. SF-1250 is definitely the first choice when powerful flashes, convenient adjustment of flash rate and a linear dimmer function are needed. In case DMX512 digital controller is required, Blaze Compact Strobe (SF1250D) will be the best choice. The dimmer function of digital programming makes SF-1250D even functionally more powerful. Other functions like build-in manual adjuster for flashing rate and manual dimmer function are similar to SF-1250.
 |
|
Specifications
| Model No |
SF-1250 |
| Lamp |
ST-1250 |
| Flash Rate |
1-18 fps |
| Dimmer |
Manual |
| Signal Connector |
1/4″ (6.35mm) mono microphone jack |
| Control Mode |
0-10V DC trigger |
| Dimension (LxWxH) |
400x204x138mm |
| Weight |
2.78kg |
| Applicable Voltages |
120V/60Hz |
| Fuse |
10A NFB |
| Pulse Power Consumption |
1250W |
| Applicable Controller |
SF-01CX or SF-34CX or DS-1 |
| Model No |
SF-1250D |
| Lamp |
ST-1250 |
| Flash Rate |
1-18 fps |
| Dimmer |
DMX, programmable |
| Signal Connector |
3 pin XLR |
| Control Mode |
2CH, DMX512 signal |
| Dimension (LxWxH) |
400x204x138mm |
| Weight |
2.93kg |
| Applicable Voltages |
120V/60Hz |
| Fuse |
10A NFB |
| Pulse Power Consumption |
1250W |
Key To Symbols (For SF-1250)
Key To Symbols (For SF-1250D)
