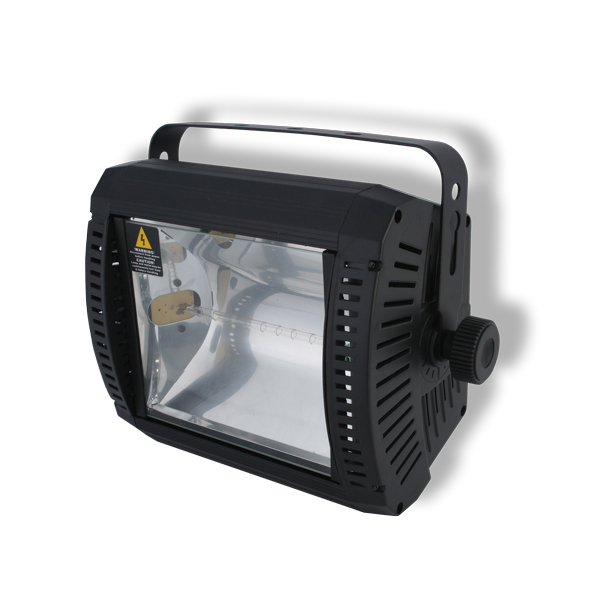

Rays Strobe (SF-300/300D)

Rays Strobe is an indispensable standard accessory for medium and large ballrooms. With I-type xenon lamp, Rays Strobe can emit a 300 watt powerful flashes by a flashing rate of 1-18 times per second. Synchronous control can be achieved with input of analog signal. The unprecedented design of elegant streamline profile greatly attracts the public. Freewheeling adjustment function of flashing rate and powerfully rapid flashes excites the atmosphere. Rays Strobe can be of analogical control or of DMX signal control. For SF-300, it can be used either with the one-channel strobe controller (SF-01CX) or with the four-channel strobe controller (SF-34CX) or with DS-1 simple DMX digital controller to control the flashing rate. For SF-300D, it can be used with different kinds of DMX controllers for programming.


Specifications

Model No SF-300
Lamp ST-300
Flash Rate 1-18 fps
Dimmer N/A
Signal Connector 1/4″ (6.35mm) mono microphone jack
Control Mode 0-10V DC trigger
Dimension (LxWxH) 278x140x220mm
Weight 1.96kg
Applicable Voltages 120V/60Hz or 230V/50Hz
Fuse 5A/250V or 1.6A/250V
Pulse Power Consumption 300W
Applicable Controller SF-01CX or SF-34CX or DS-1
Model No SF-300D
Lamp ST-300
Flash Rate 1-18 fps
Dimmer N/A
Signal Connector 3 pin XLR
Control Mode 1CH, DMX512 signal
Dimension (LxWxH) 278x140x220mm
Weight 2.11kg
Applicable Voltages 120V/60Hz or 230V/50Hz
Fuse 5A/250V or 1.6A/250V
Pulse Power Consumption 300W

Key To Symbols (For SF-300)



Key To Symbols (For SF-300D)
