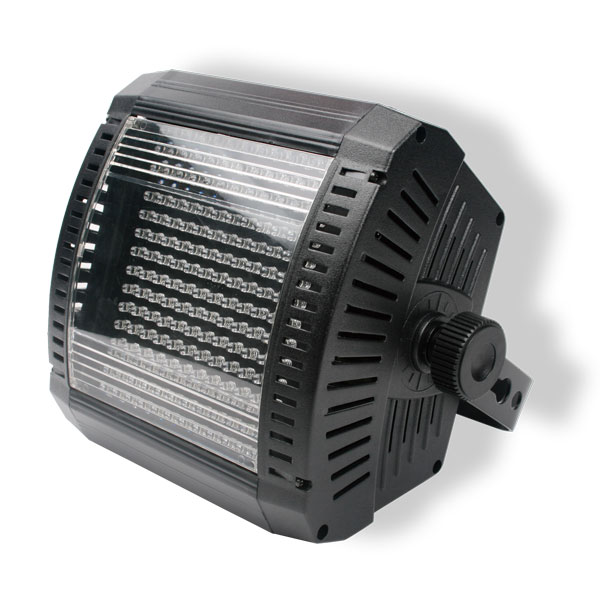

Rays LED Strobe (SF-L150F)

Rays LED Strobe is the standardized equipment for enhancing the atmosphere of a party. Rays LED Strobe can emit powerful flash by a flash rate of 0.5Hz~20Hz. It uses the green energy led source and it can input the synchronous control of the analog signal. Thanks to the popular plastic material, the fashionable appearance comes into being. The design is cut-edging and slightly-handling, which would attract all the people as a whole. Rays LED Strobe can be used with the one-channel LED strobe controller (SF-L01CX) to provide simple operation mode to that saves a lot of time.


Specifications

Model SF-L150F
Illuminant 168*0.1W White LED
Flash Speed 0.5Hz~20Hz
Connector 1/4” (6.35mm)mono microphone jack
Control Mode 0~10 DC trigger
Dimension (LxWxH) 238x140x220mm
Weight 1.07kg
Applicable Voltages 120V/60HZ or 230V/50Hz
Fuse T0.5A/250V
Power Consumption 17.3W
Applicable Controller SF-L01CX
