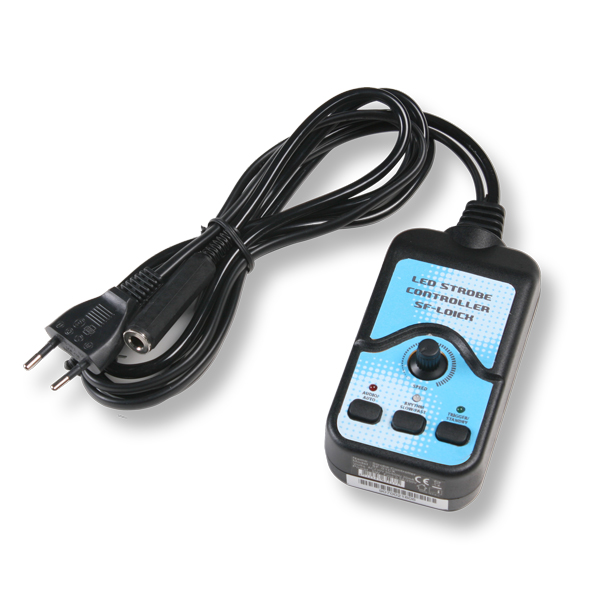

One-Channel LED Strobe Controller (SF-L01CX)

The typical and basic one-channel LED strobe controller (SF-L01CX) is the best friend of Rock LED strobe. SF-L01CX has automatic control, audio control and manual control. Under automatic mode, flashing speed is adjustable within the range of 0.5Hz~20Hz. When it is audio control mode, fast flashing rhythm or slow flashing rhythm is optional. Manual mode can be function flashing by triggers as well as Standby by pressing the button three seconds and Full light by pressing again the button three seconds. SF-L01CX is equipped with standard 1/4-inch jack output and can control from 1 up to 4 analogical strobes. Its fashionably streamlined plastic case greatly attracts the public.


Specifications

Model SF-L01CX
Output Signal 10V DC
Connectors 1/4” (6.35mm)mono microphone jack
Maximum load 4 LED Strobes
Dimensions (L x W x H) 120 x 65 x 35 mm
Weight 380 g
Voltages Available 120V/60Hz or 230V/50Hz
Fuse 0.5A/250V
Power Consumption 5W
Applicable Lighting SF-L150F
